Reverse Lockout Solenoid C1 (AQ9)



Automatic Transmission Shift Lock Control Connector End Views

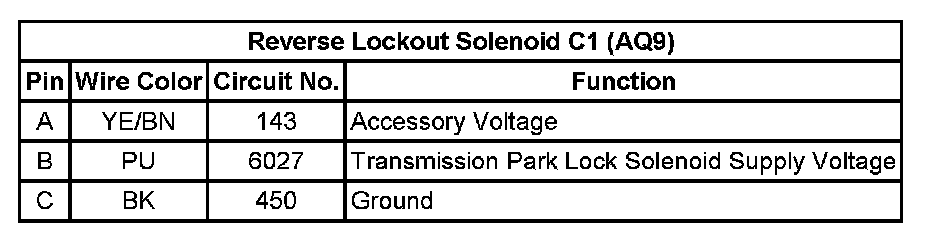

Reverse Lockout Solenoid C1 (AQ9)

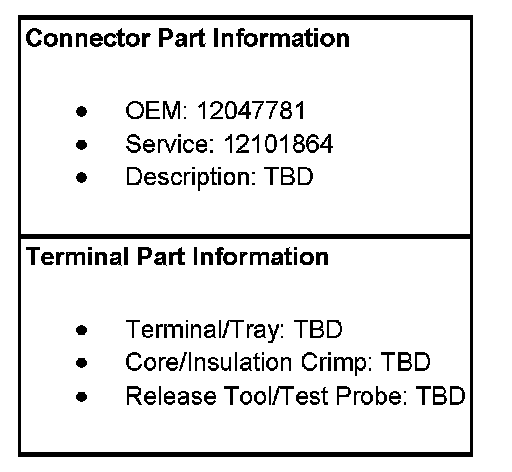

Reverse Lockout Solenoid C1 (AQ9):
