Seat Cushion: Diagrams

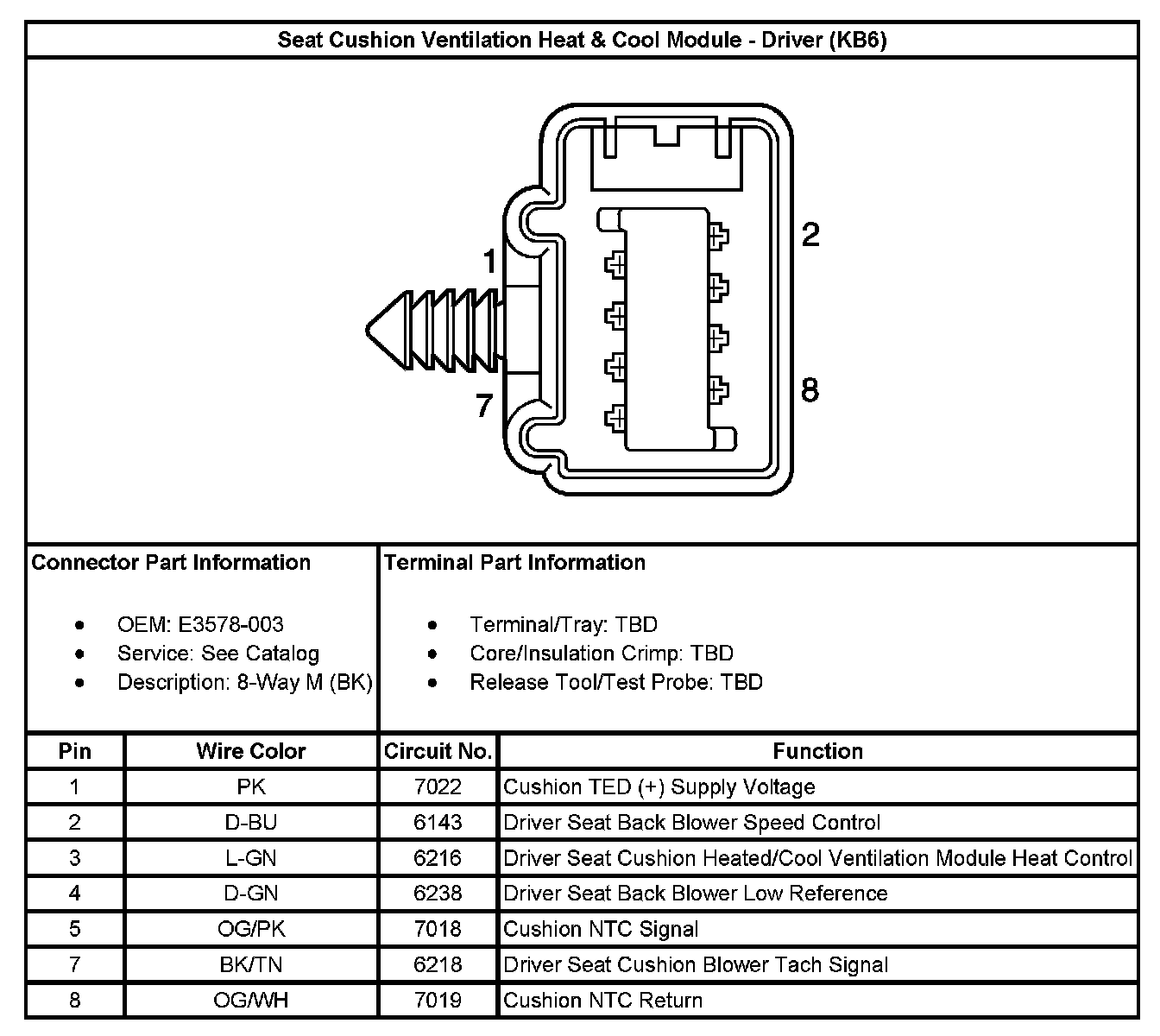

Seat Cushion Ventilation Heat & Cool Module - Driver (With RPO Code KB6):

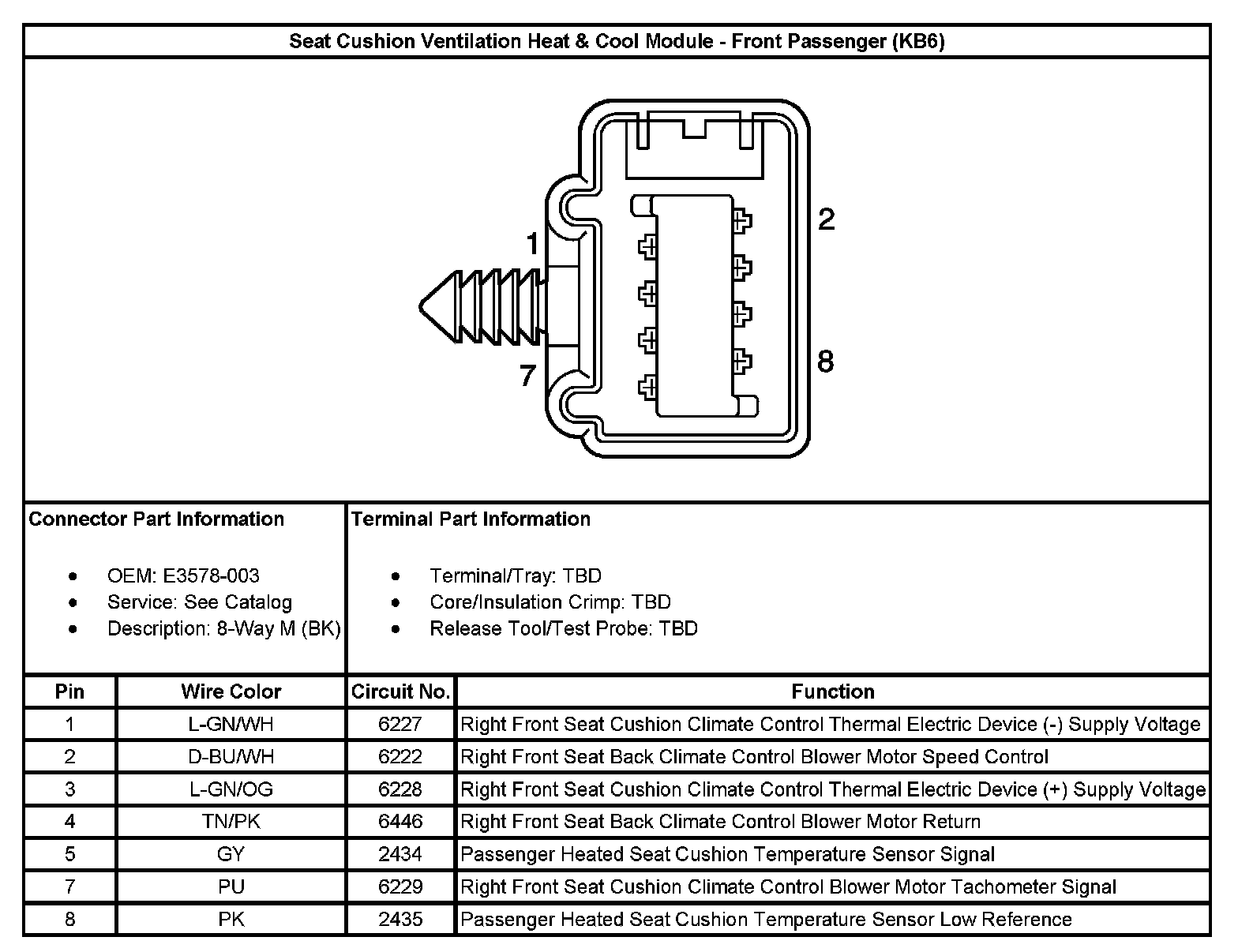

Seat Cushion Ventilation Heat & Cool Module - Front Passenger (With RPO Code KB6):
