Front Suspension

Stabilizer Shaft Insulator Replacement

Removal Procedure
1. Raise and support the vehicle.

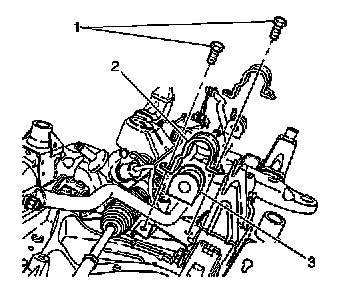

2. Remove the stabilizer shaft mounting bolts (1) and bracket (2).
3. Remove the stabilizer shaft insulators from the stabilizer shaft.

Installation Procedure





1. Install the stabilizer shaft insulators (3) to the stabilizer shaft with the slit facing rearward.

2. Install the stabilizer shaft bracket (2) and mounting bolts (1).

Notice: Refer to Fastener Notice in Service Precautions.


Tighten the bolts to 60 Nm (44 ft. lbs.).
3. Lower the vehicle.
