Cadillac
>>
2006
>>
CTS V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C500 - C599
>>
C501
C501

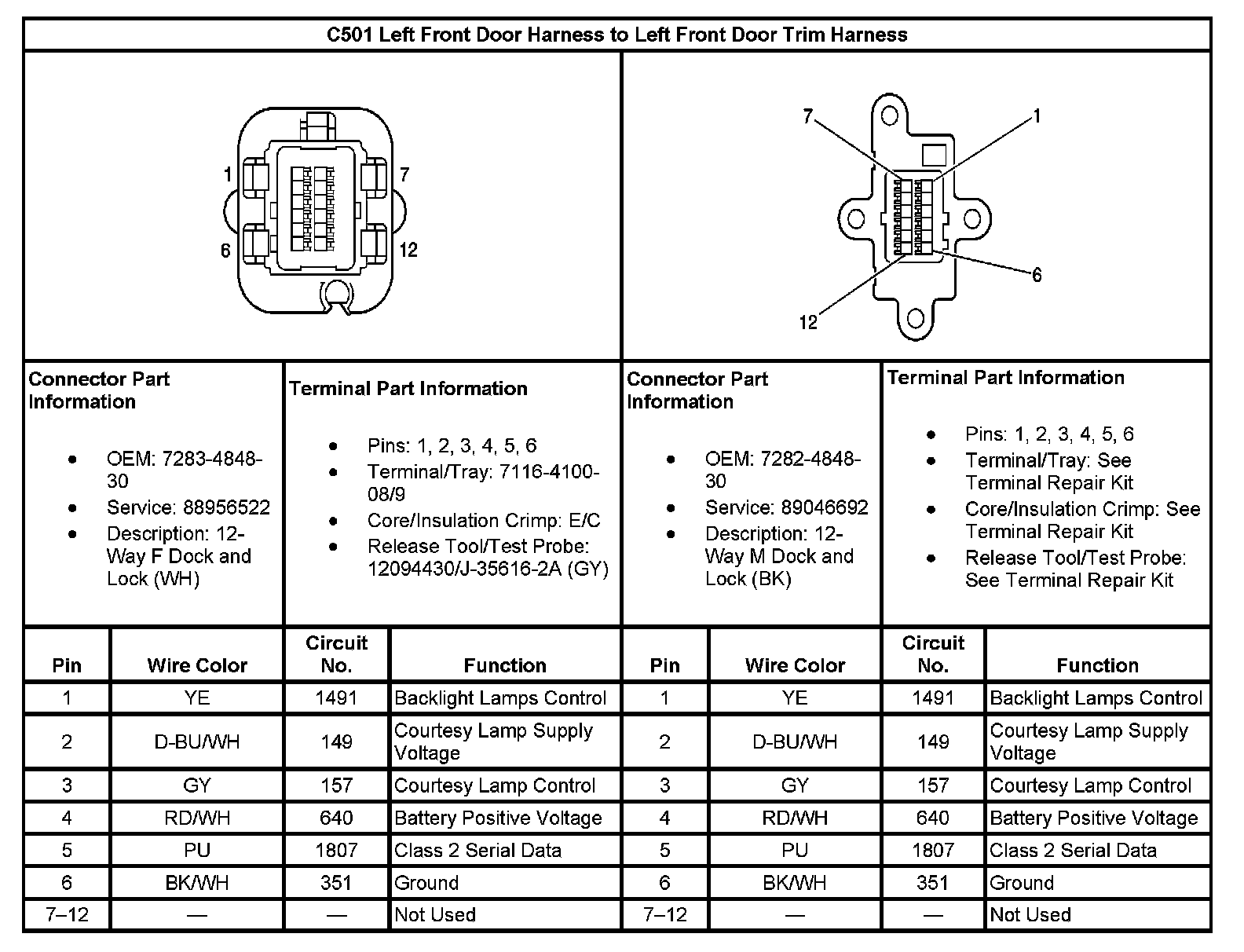

C501 Left Front Door Harness To Left Front Door Trim Harness:
