CTS V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C200 - C299
>>
C204
C204

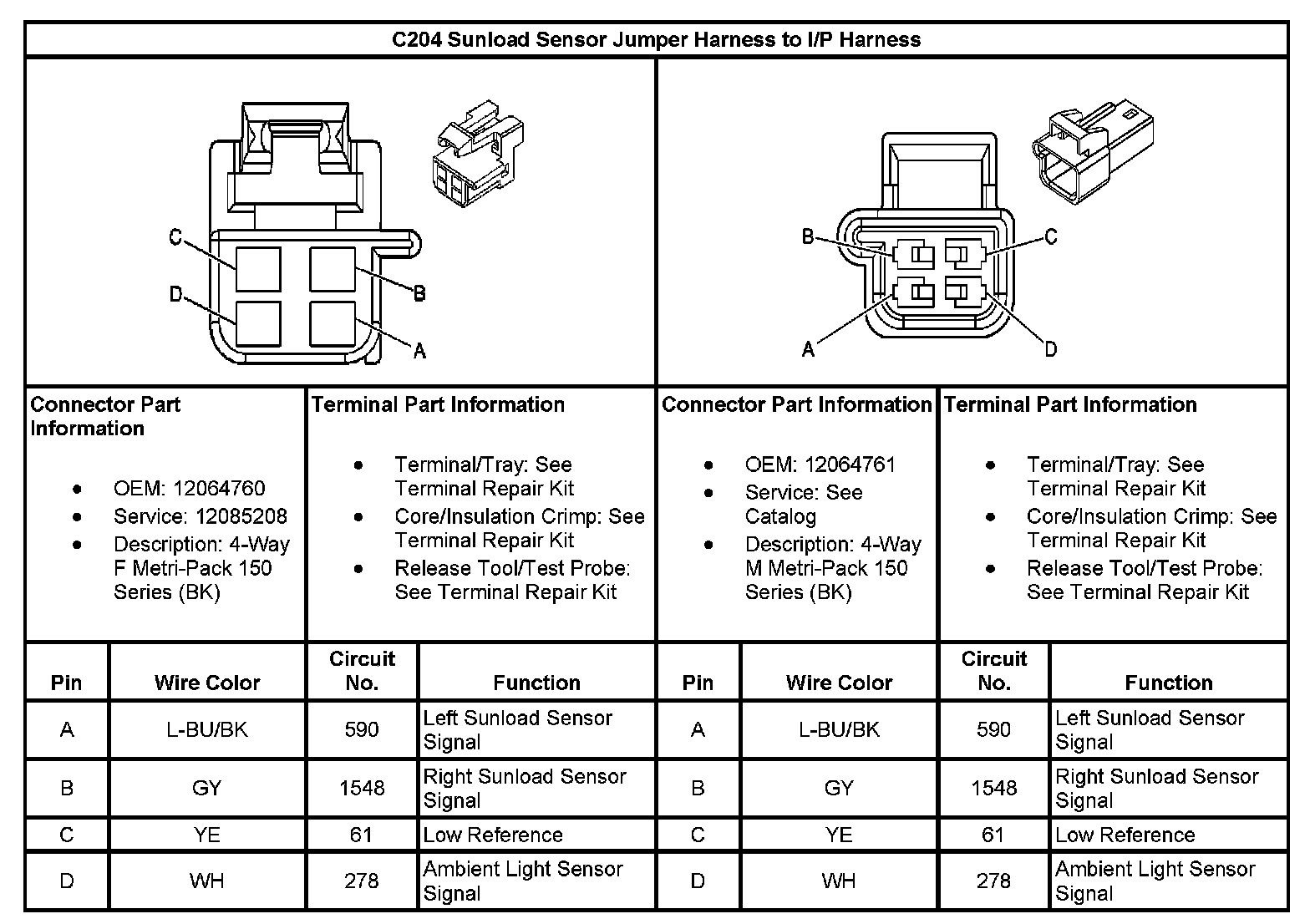

C204 Sunload Sensor Jumper Harness to I/P Harness:
