Home
>>
Cadillac
>>
2006
>>
CTS V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag
>>
Inflatable Restraint Passenger Presence System (PPS) Module
Inflatable Restraint Passenger Presence System (PPS) Module

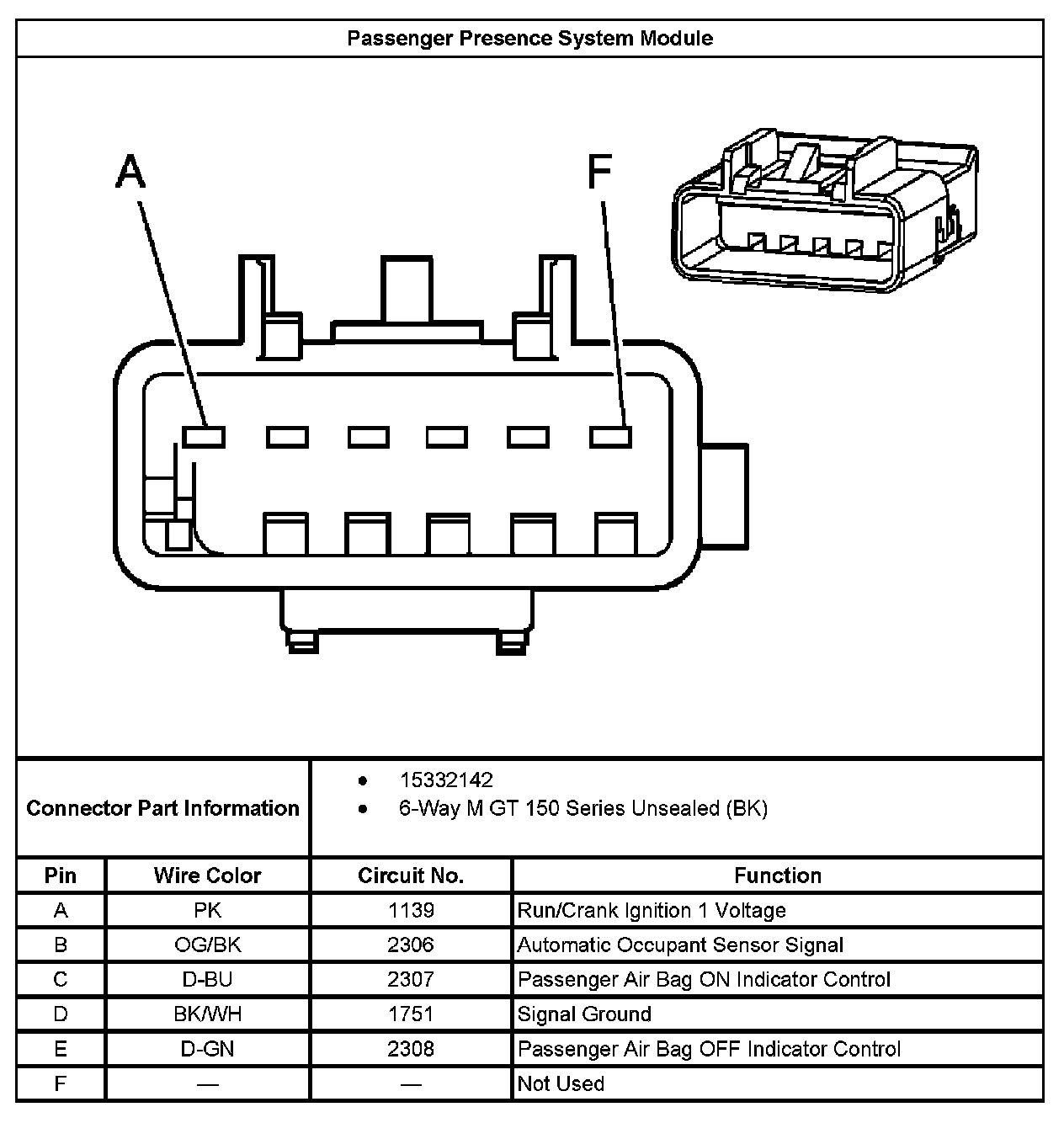

Passenger Presence System Module:
