Rear Suspension

Stabilizer Shaft Link Replacement

Removal Procedure
1. Raise and support the vehicle.
2. Remove the tire and wheel.

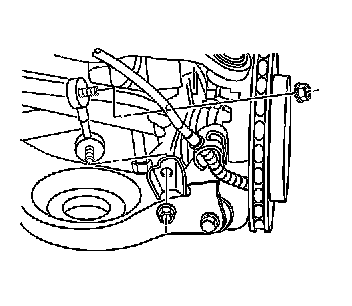

3. Remove the stabilizer shaft link retaining nuts.
4. Remove the stabilizer shaft link from the stabilizer shaft.
5. Remove the stabilizer shaft link from the lower control arm.

Installation Procedure





1. Install the stabilizer shaft link to the lower control arm.
2. Install the stabilizer shaft link to the stabilizer shaft.
3. Install the stabilizer shaft link retaining nuts.
Tighten the nuts to 50 Nm (37 ft. lbs.).

Notice: Refer to Fastener Notice in Service Precautions.

4. Install the tire and wheel.
5. Lower the vehicle.
