Turn Signal Cancel Cam and Upper Bearing Inner Race Replacement

Turn Signal Cancel Cam and Upper Bearing Inner Race Replacement

Tools Required
^ J23653-SIR Lock Plate Compressor
^ J42137 Cam Orientation Plate Adapter

Removal Procedure





1. Caution: Refer to SIR Caution in Service Precautions.

Disable the SIR system. Refer to Restraint System Disabling and Enabling Zone 3.
2. Remove the SIR coil.

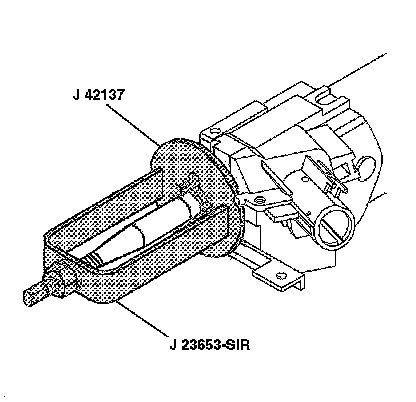

3. Remove and discard the bearing retainer using J23653-SIR and J42137.

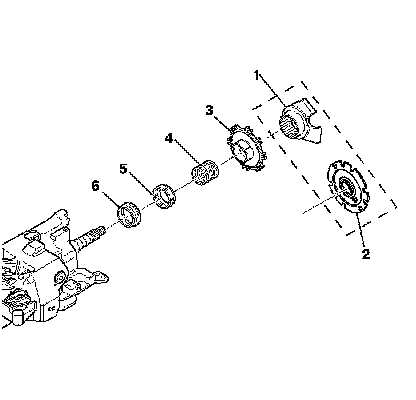

4. Remove the shaft lock (2) or the cam orientation plate (1).

5. Important: Do not wipe the lubricant off the turn signal cancel cam assembly.

Remove the turn signal cancel cam assembly (3).
6. Remove the upper bearing spring (4).
7. Remove the upper bearing inner race seat (5).
8. Remove the inner race (6).

Installation Procedure





1. Install the inner race (6).
2. Install the upper bearing inner race seat (5).
3. Install the upper bearing spring (4).
4. Install the turn signal cancel cam (3).

5. Important: The electrical contact of the turn signal and multifunction switch assembly must rest on the turn signal cancel cam assembly.

Install the shaft lock (2) or the cam orientation plate (1).





6. Install the new bearing retainer using J23653-SIR and J42137.

7. Caution: Refer to SIR Inflator Module Coil Caution in Service Precautions.

Install the SIR coil.
8. Enable the SIR system. Refer to Restraint System Disabling and Enabling Zone 3.
