Control Module: Diagrams

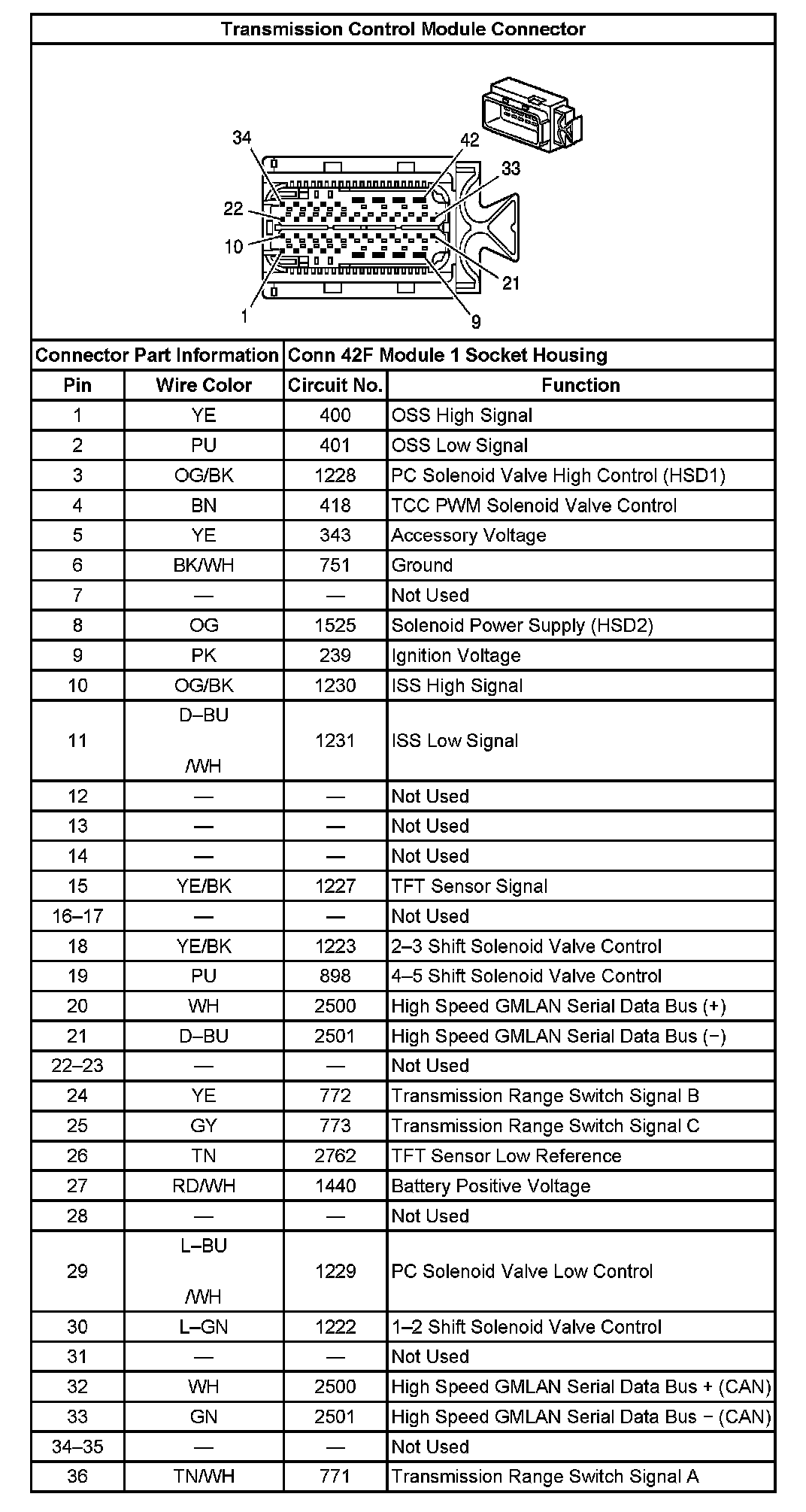

Transmission Control Module Connector:

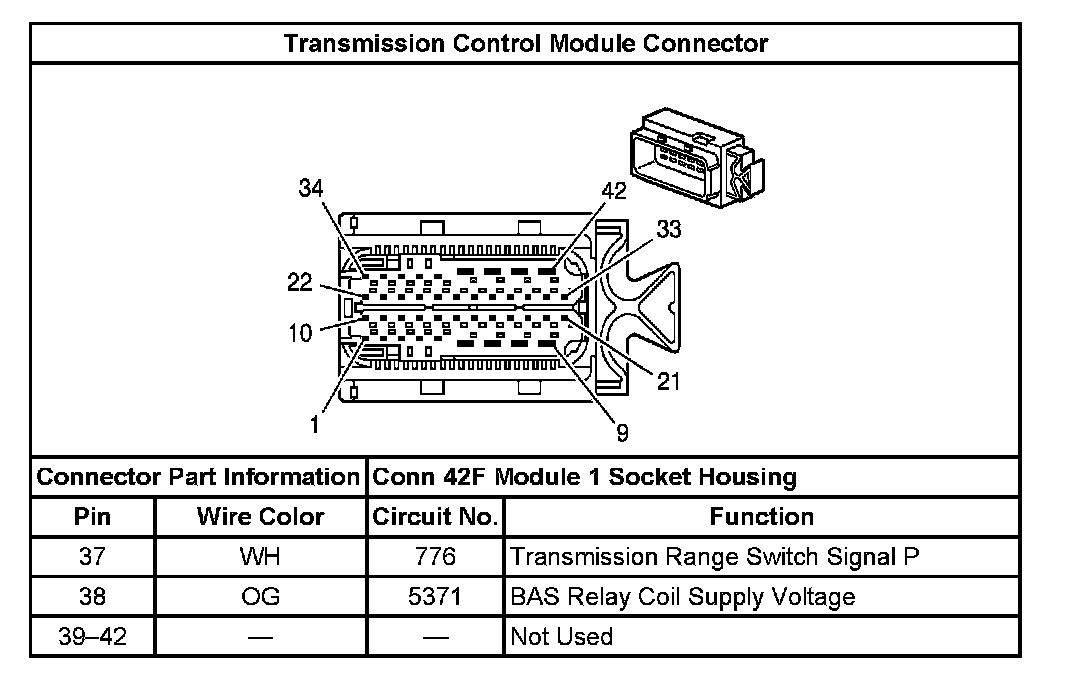

Transmission Control Module Connector:
