Cadillac
>>
2006
>>
CTS V6-2.8L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Diagrams
>>
Connector Views
>>

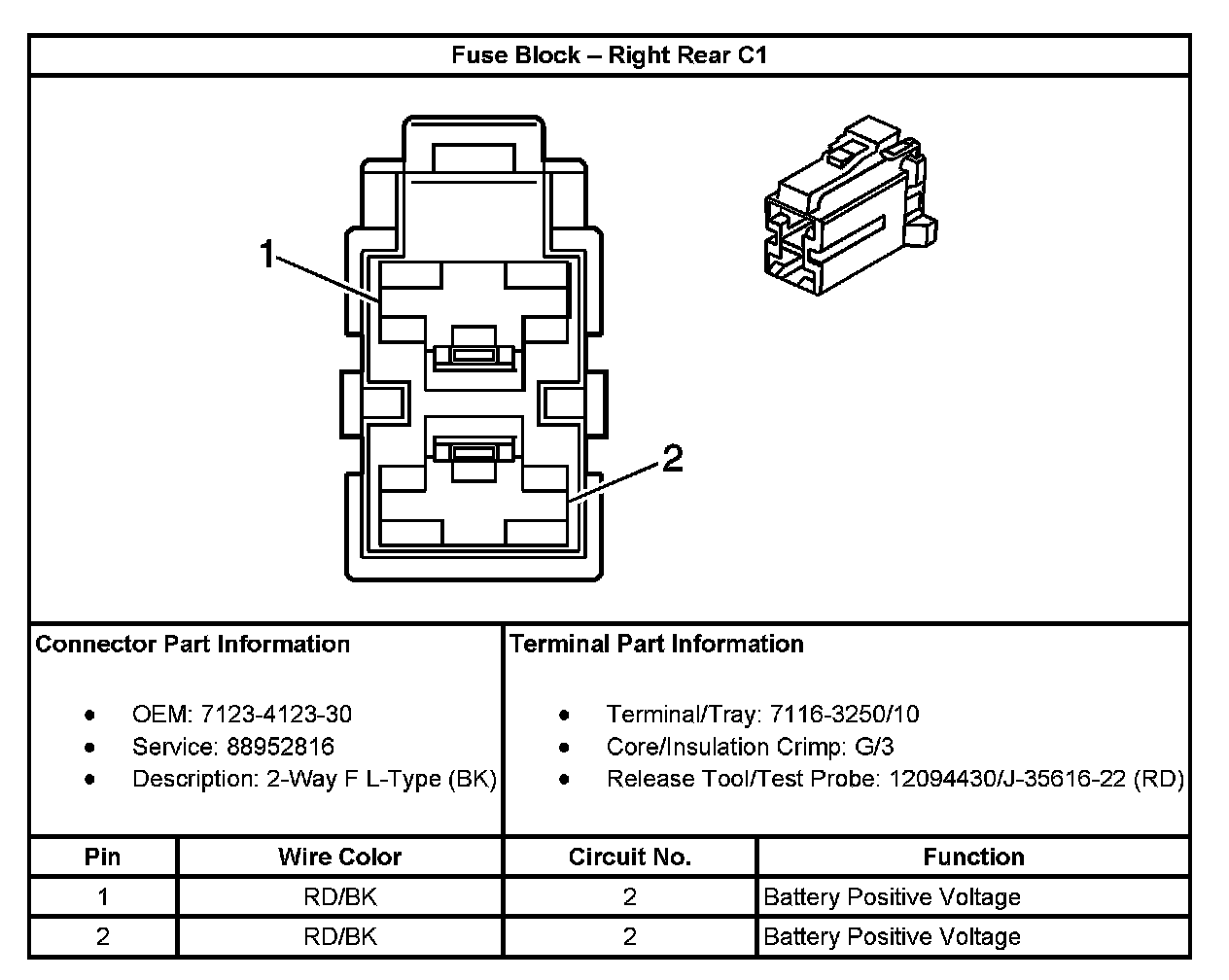

Fuse Block - Right Rear C1
Fuse Block - Right Rear C1
Fuse Block - Right Rear C1:
