Home >> Cadillac >> 2006 >> CTS V6-2.8L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Diagnosis By Symptom - HVAC System - Automatic >> Compressor Clutch Does Not Engage

Compressor Clutch Does Not Engage

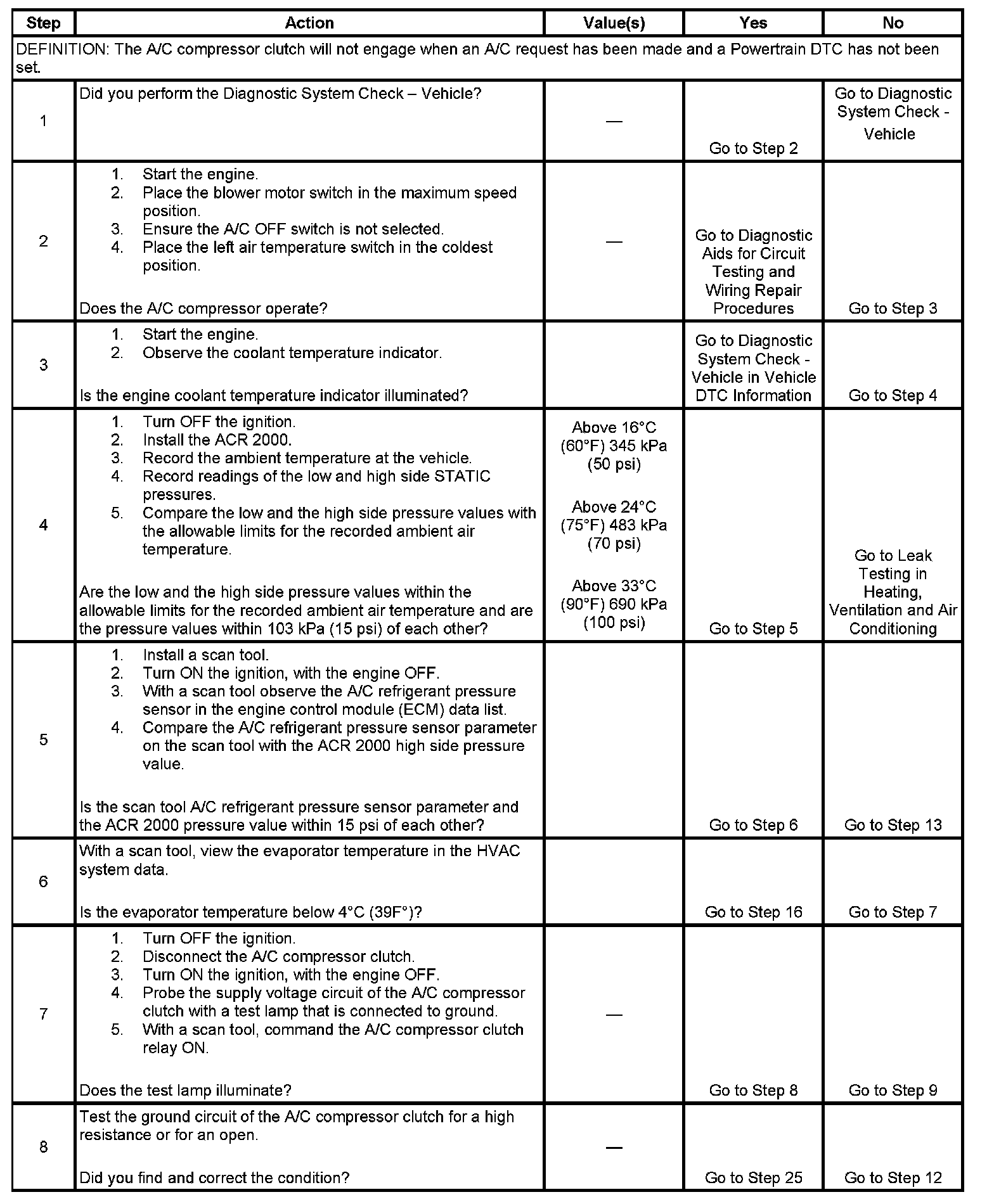

Steps 1 - 8:



Steps 9 - 21:

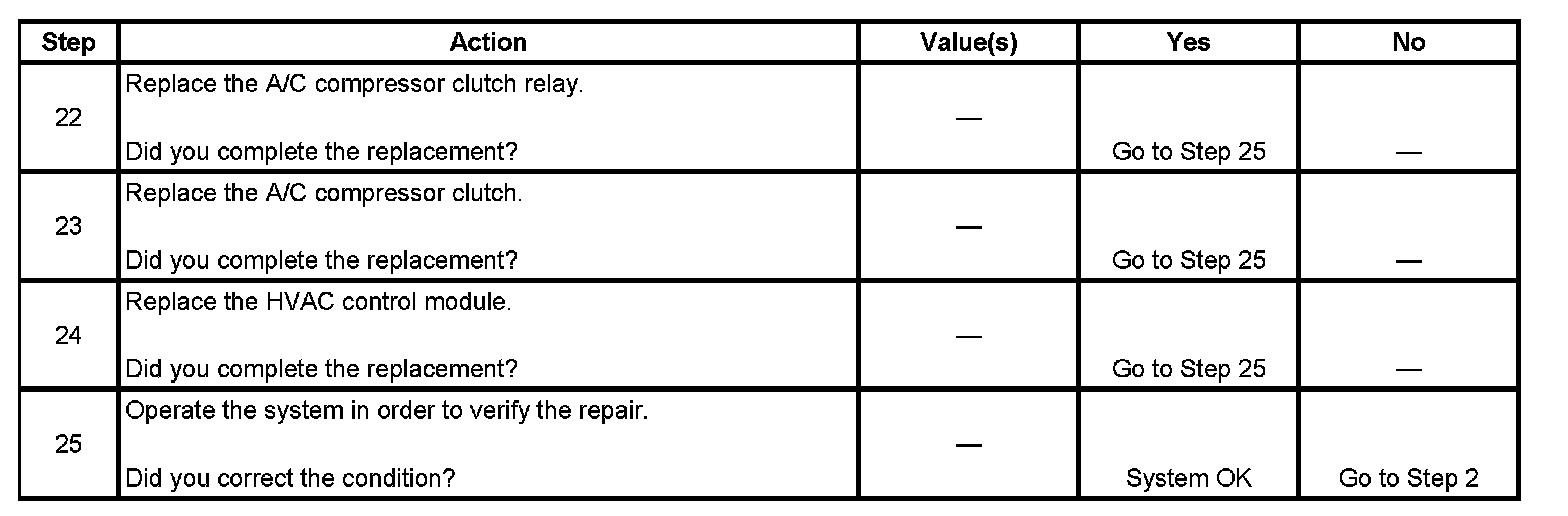

Steps 22 - 25:
