Engine Mount Bracket Replacement - Right

Engine Mount Bracket Replacement - Right Side

Removal Procedure




1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Install a screw jack with a block of wood under the oil pan for support.
3. Remove the lower engine mount retaining nut.
4. Raise the engine using the screw jack until the weight is removed from the mount.




5. Remove the upper engine mount retaining nut.
6. Remove the engine mount from the vehicle.
7. Remove the starter.




Important: Ensure not to distort or bend the engine mount heat shield.

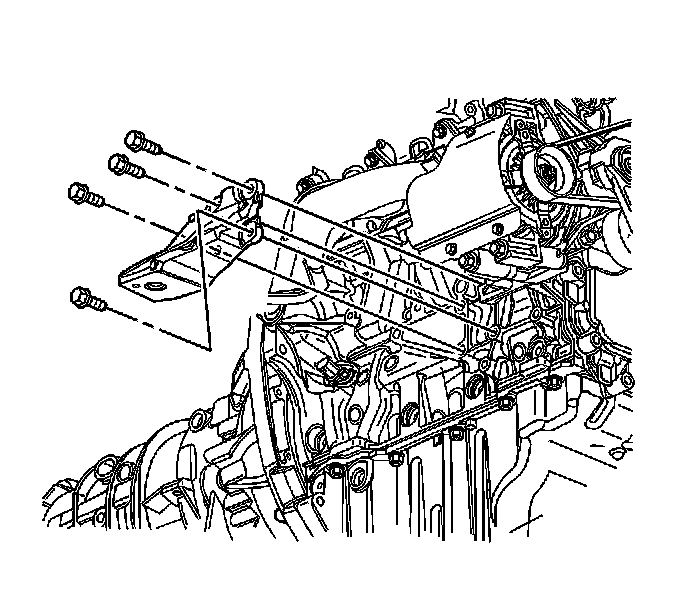

8. Remove the right engine mount bracket mounting bolts.
9. Remove the engine mount bracket from the vehicle.

Installation Procedure




1. Install the engine mount bracket to the vehicle.

Notice: Refer to Fastener Notice.

2. Tighten the M10 engine mount bracket mounting bolts.

Tighten the bolts to 60 N.m (44 lb ft).

3. Tighten the M 8 engine mount bracket mounting bolt.

Tighten the bolt to 38 N.m (28 lb ft).

4. Install the starter.




5. Install the engine mount to the vehicle.

Notice: Refer to Fastener Notice.

6. Install the upper engine mount retaining nut.

Tighten the nut to 80 N.m (59 lb ft).




7. Lower the engine using the jack screw until the weight is resting on the mount.
8. Install the engine mount retaining nut.

Tighten the nut to 80 N.m (59 lb ft).

9. Remove the screw jack and block of wood from under the oil pan.
10. Lower the vehicle.
