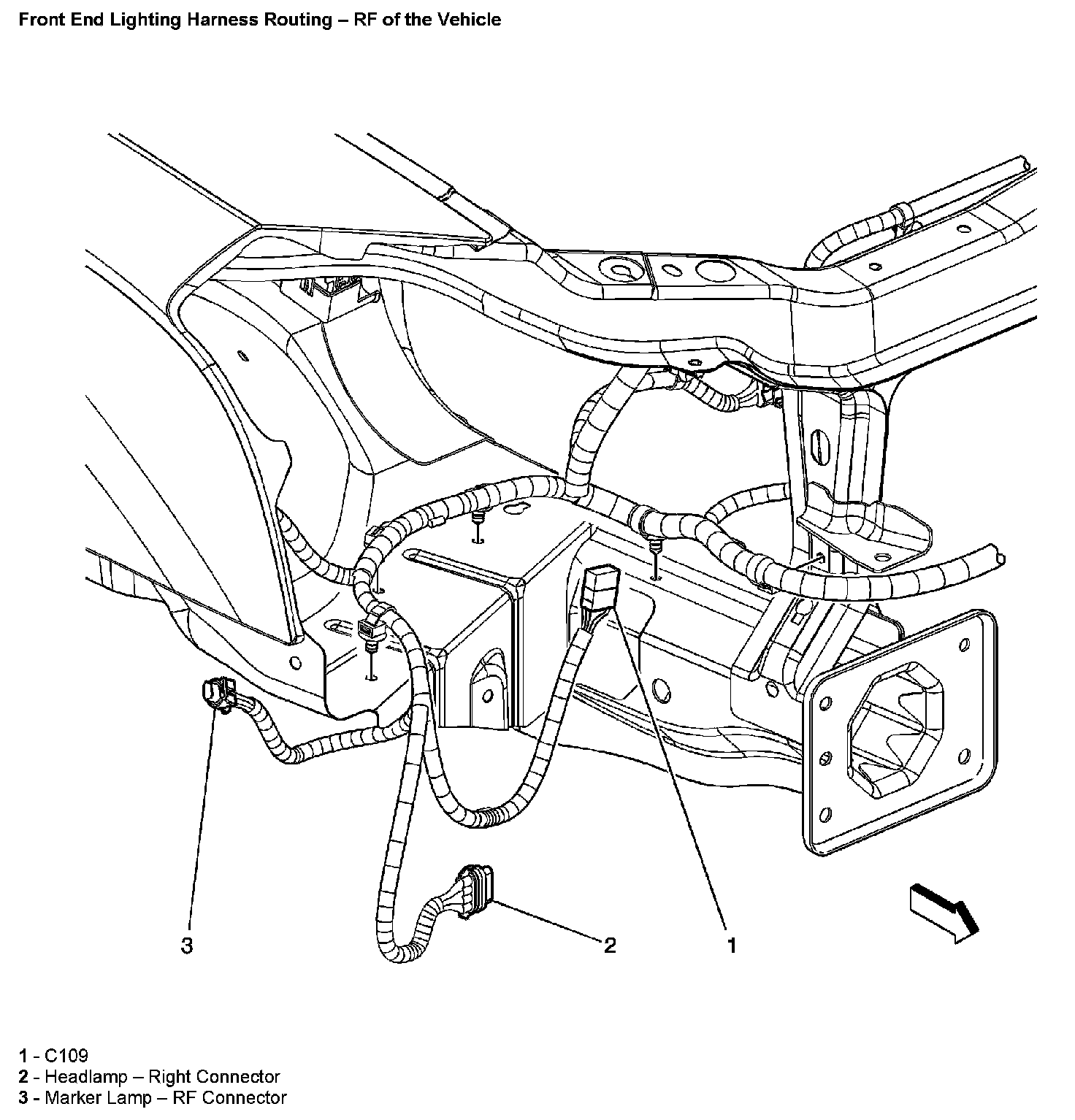

Front End Lighting Harness Routing - RF of the Vehicle
Front End Lighting Harness Routing - RF of the Vehicle
Front End Lighting Harness Routing - RF Of The Vehicle:
