Home
>>
Cadillac
>>
2006
>>
CTS V6-2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Motor
>>
Seat Horizontal Motor
Seat Horizontal Motor
Seat Horizontal Motor - Driver:

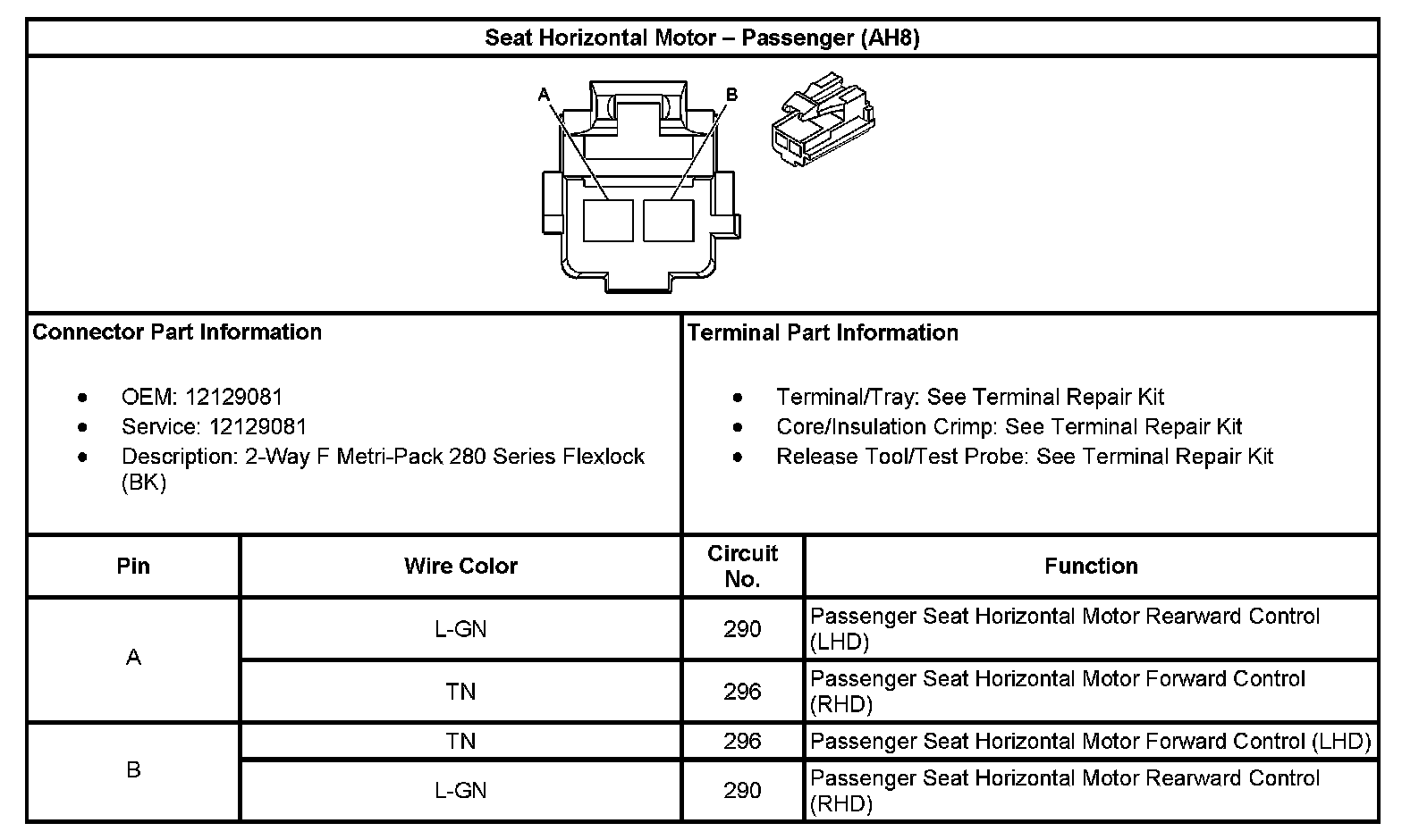

Seat Horizontal Motor - Passenger (With RPO Code AH8):
