Home
>>
Cadillac
>>
2006
>>
CTS V6-2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C300 - C399
>>
C309
C309

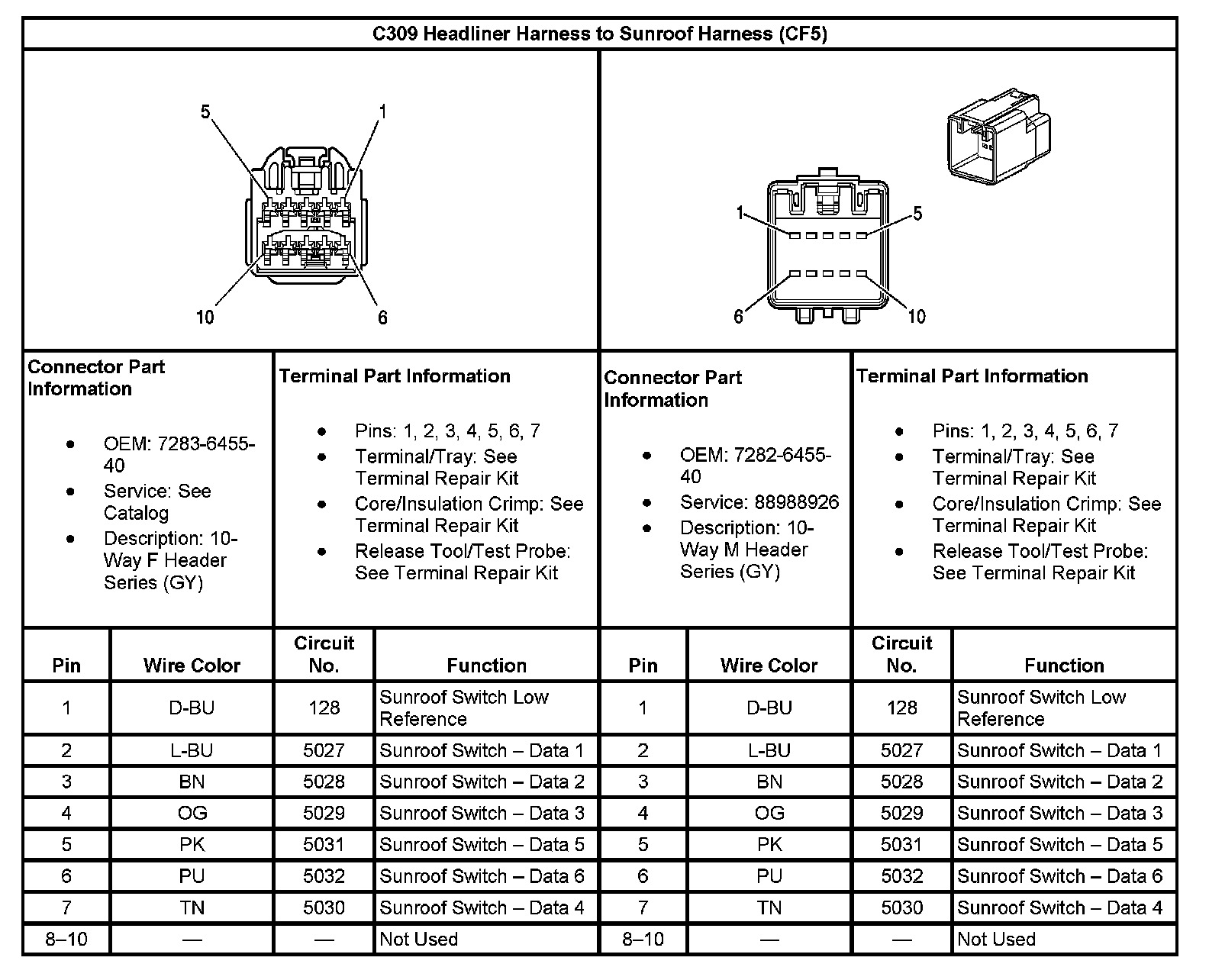

C309 Headliner Harness To Sunroof Harness (With RPO Code CF5):
