C300
C300

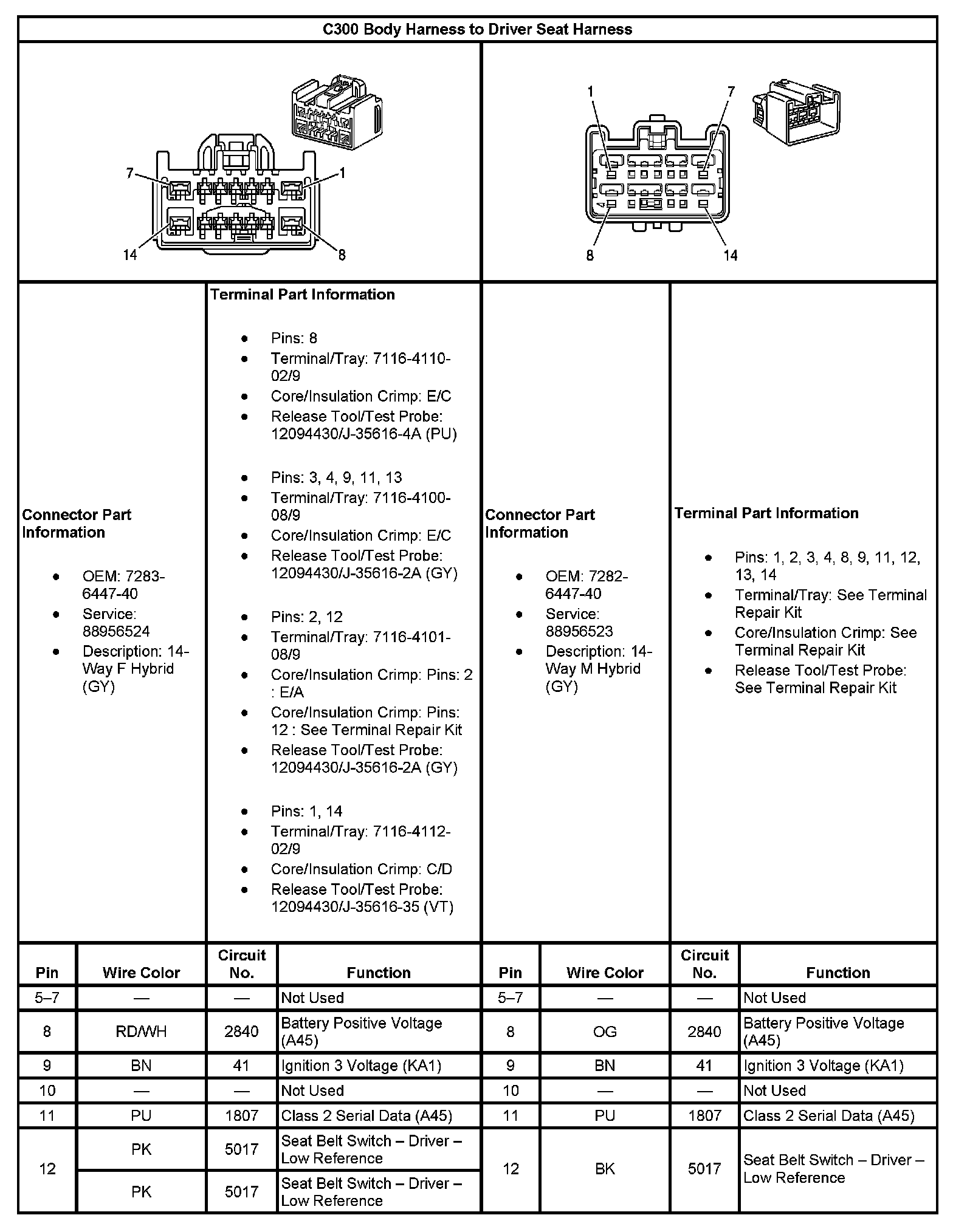

C300 Body Harness To Driver Seat Harness (Part 1):

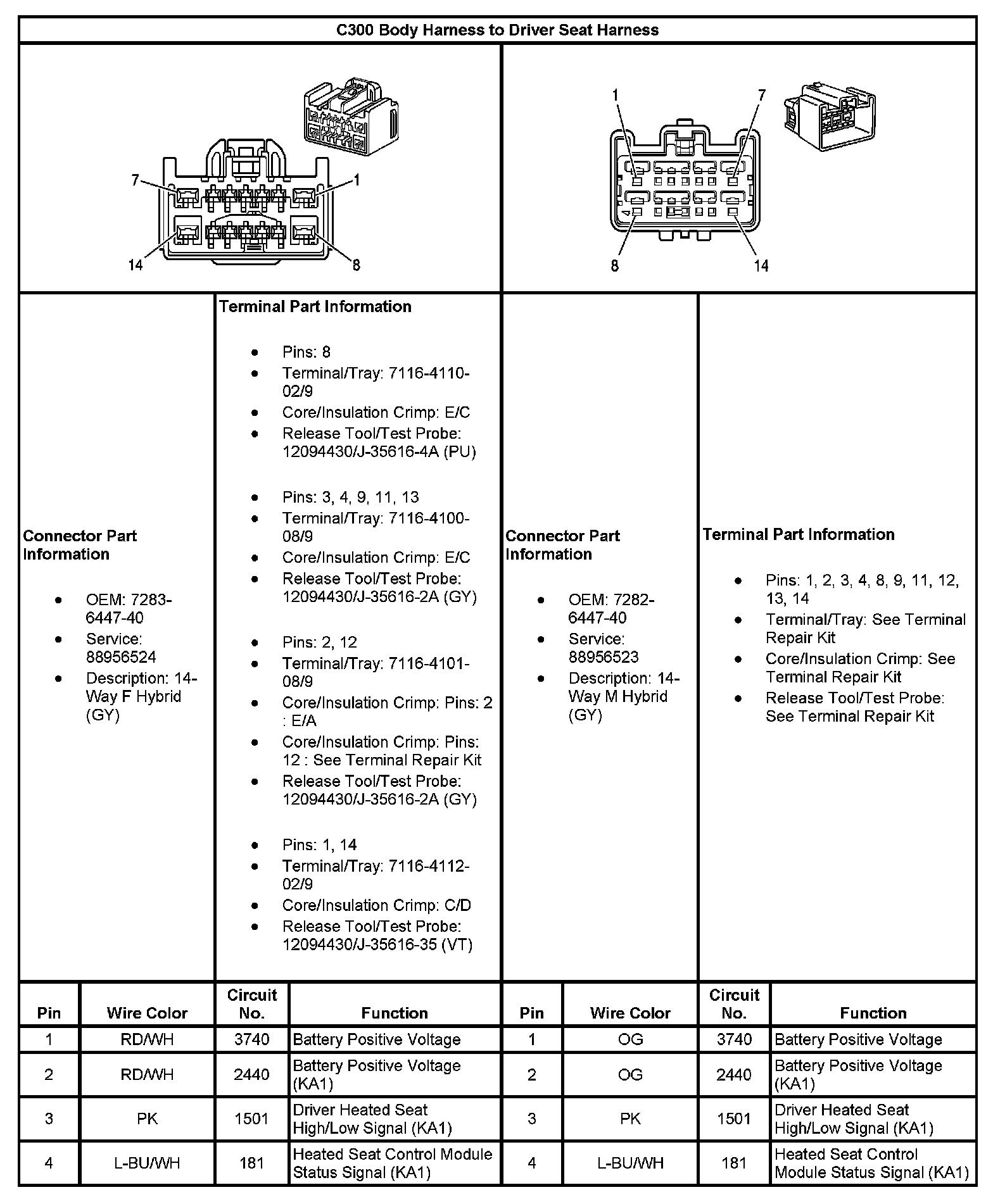

C300 Body Harness To Driver Seat Harness (Part 2):

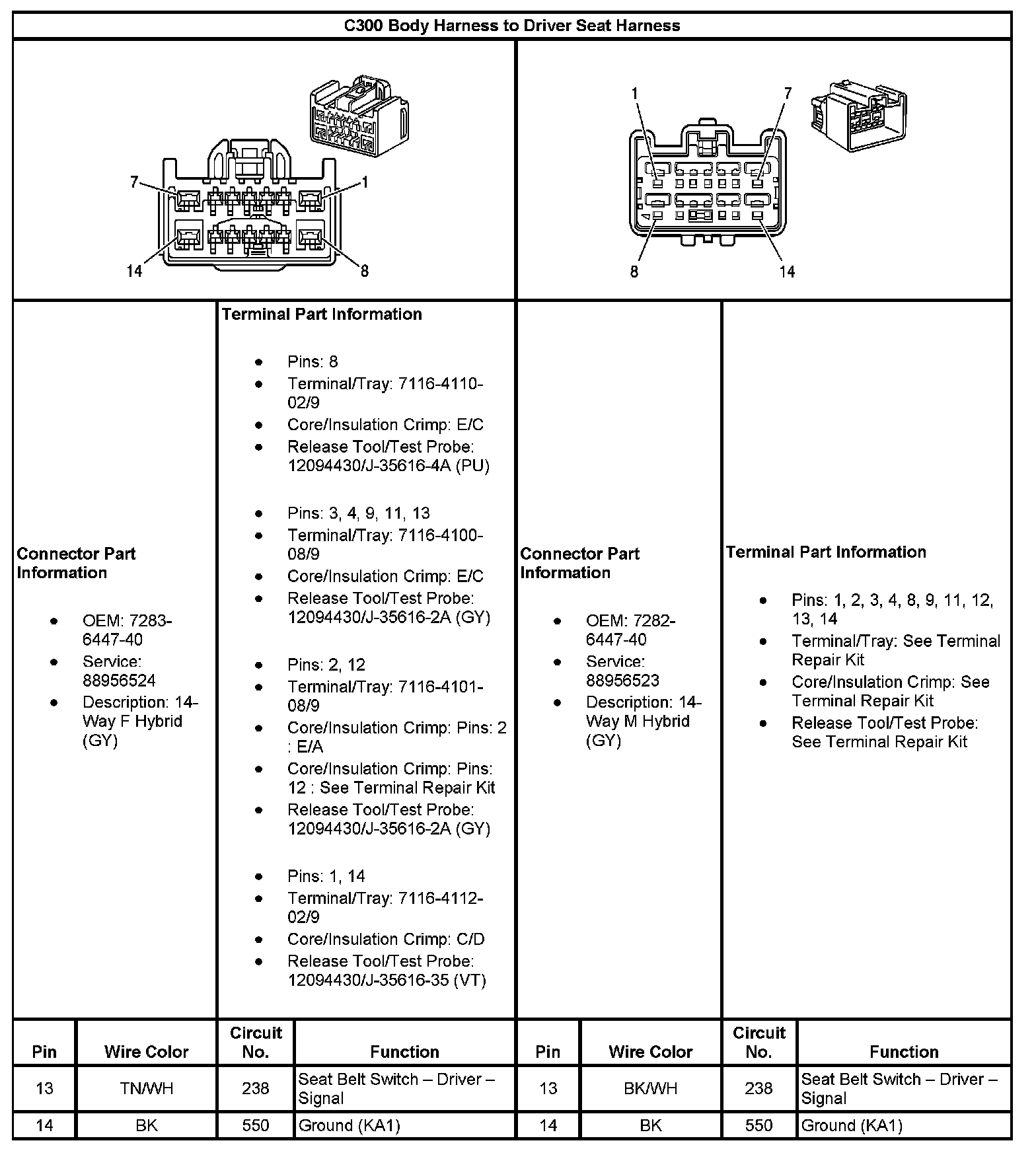

C300 Body Harness To Driver Seat Harness (Part 3):
