Cadillac
>>
2006
>>
CTS V6-2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Tank Unit
Fuel Tank Unit
Fuel Pump And Sender Assembly (Primary):

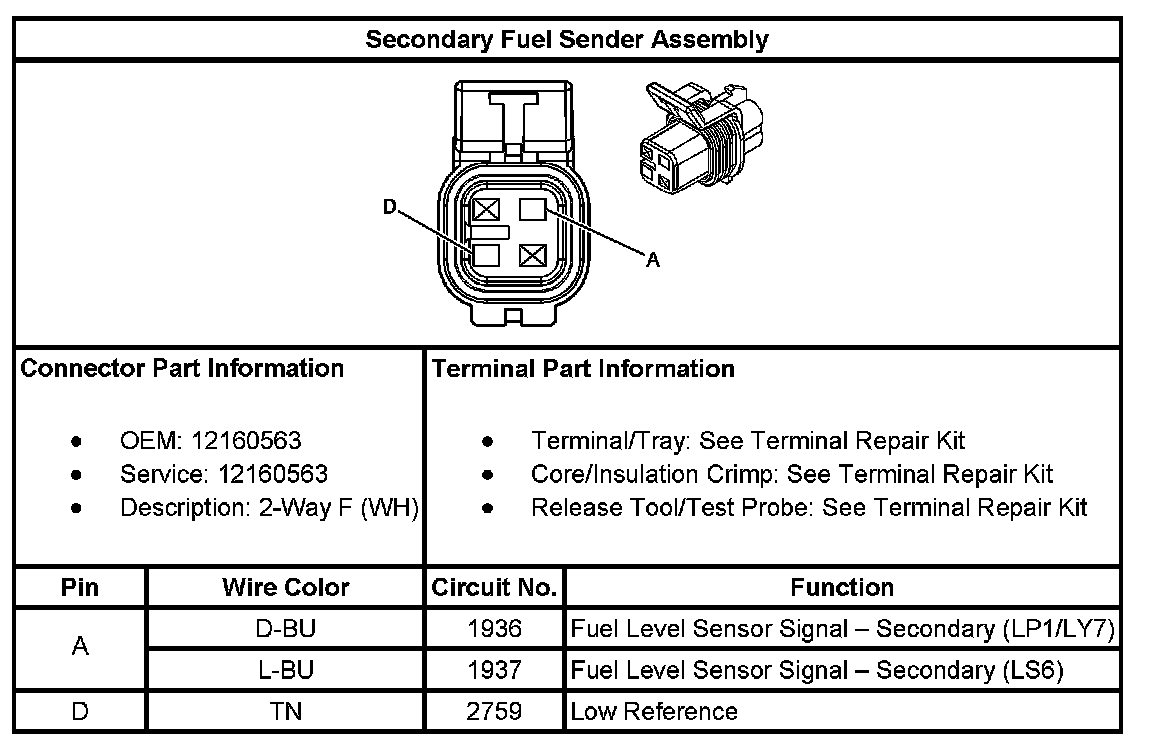

Secondary Fuel Sender Assembly:
