Speaker Replacement - Front Upper

SPEAKER REPLACEMENT - FRONT UPPER

REMOVAL PROCEDURE
1. Remove the front door trim panel.

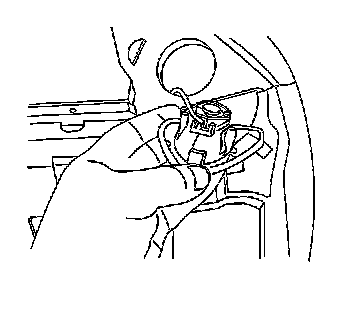

2. Disconnect the upper door speaker electrical connector from the door harness.




3. Remove the upper door speaker / grille assembly by gently prying the assembly from the molding.

INSTALLATION PROCEDURE




1. Install the upper door speaker / grille assembly into the molding. Ensure that the speaker grille is properly seated in the molding.
2. Connect the upper door speaker electrical connector to the door harness.

IMPORTANT: If the upper and lower door speakers on the door have been disconnected, ensure that the upper and lower speakers are reconnected to the proper door harness connector.

3. Install the door trim panel.
