Speaker Replacement - Front Lower



SPEAKER REPLACEMENT - FRONT LOWER

REMOVAL PROCEDURE
1. Remove the door trim panel.

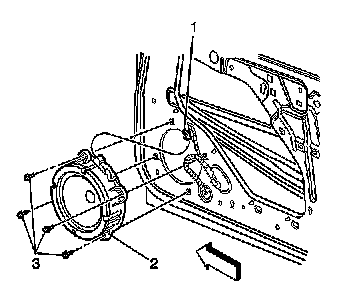

2. Disconnect the electrical connector (1).
3. Remove the screws (3) securing the speaker (2) to the door frame.
4. Remove the speaker from the door.

INSTALLATION PROCEDURE




1. Connect the electrical connector (1).
2. Install the speaker (2) onto the door frame.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the screws (3) securing the speaker to the door frame.

Tighten the screws to 2 N.m (18 lb in).

4. Install the door trim panel.
