Home
>>
Cadillac
>>
2005
>>
STS V8-4.6L VIN A
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Body Control Module
>>
Rear Integration Module (RIM) C3
Rear Integration Module (RIM) C3

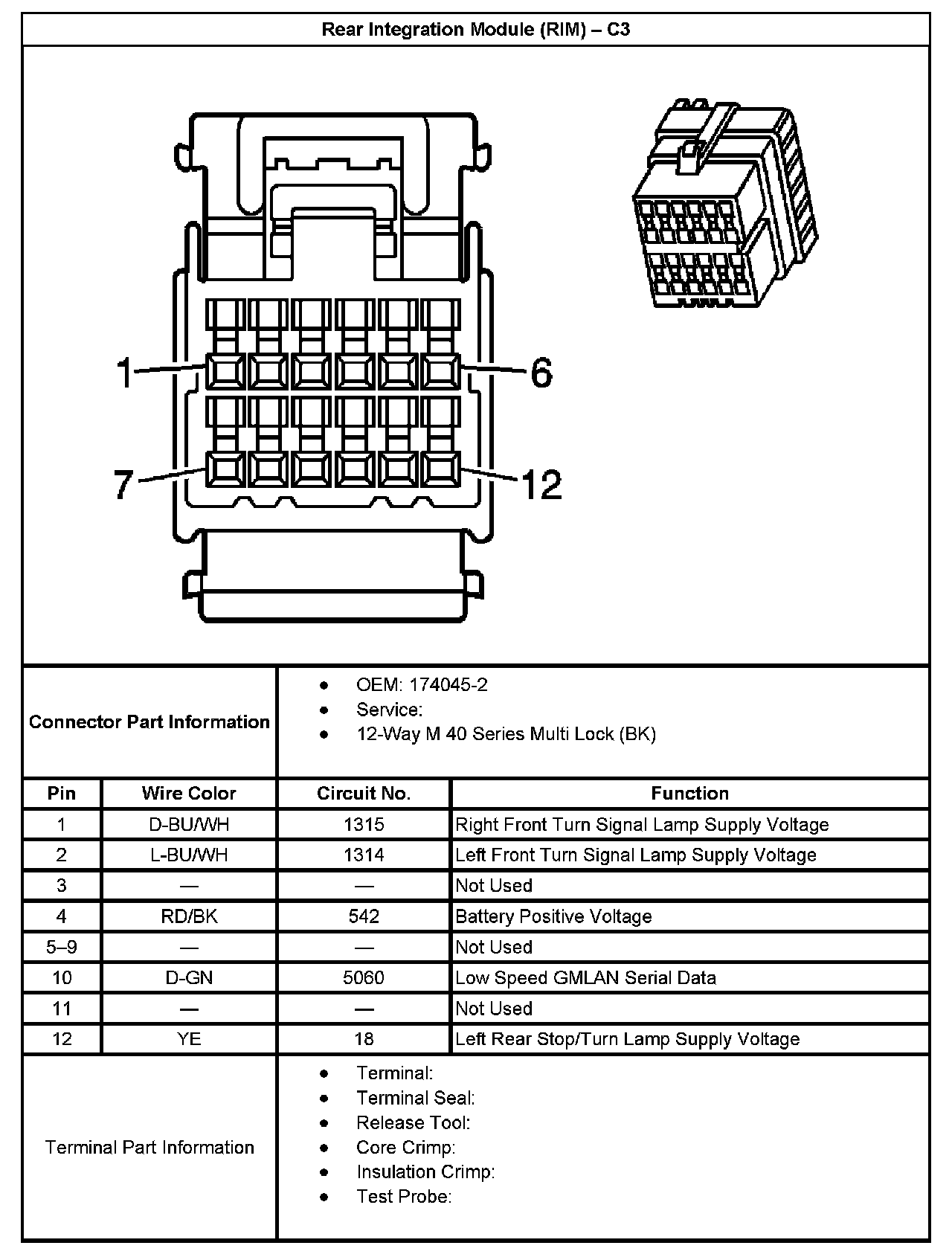

Rear Integration Module (RIM) - C3:
