Cadillac
>>
2005
>>
STS V6-3.6L VIN 7
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Backup Lamp
Backup Lamp

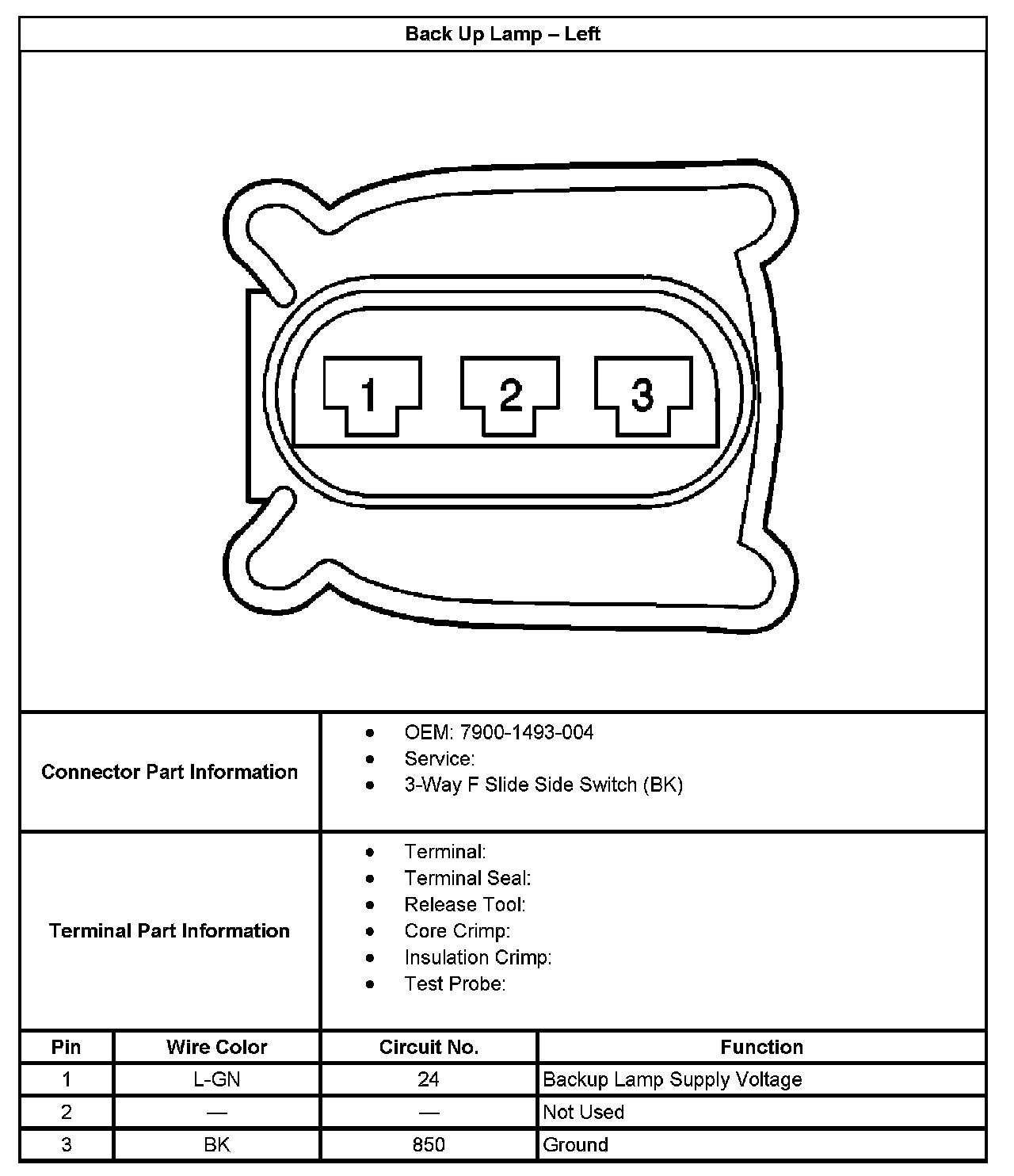

Back Up Lamp - Left:

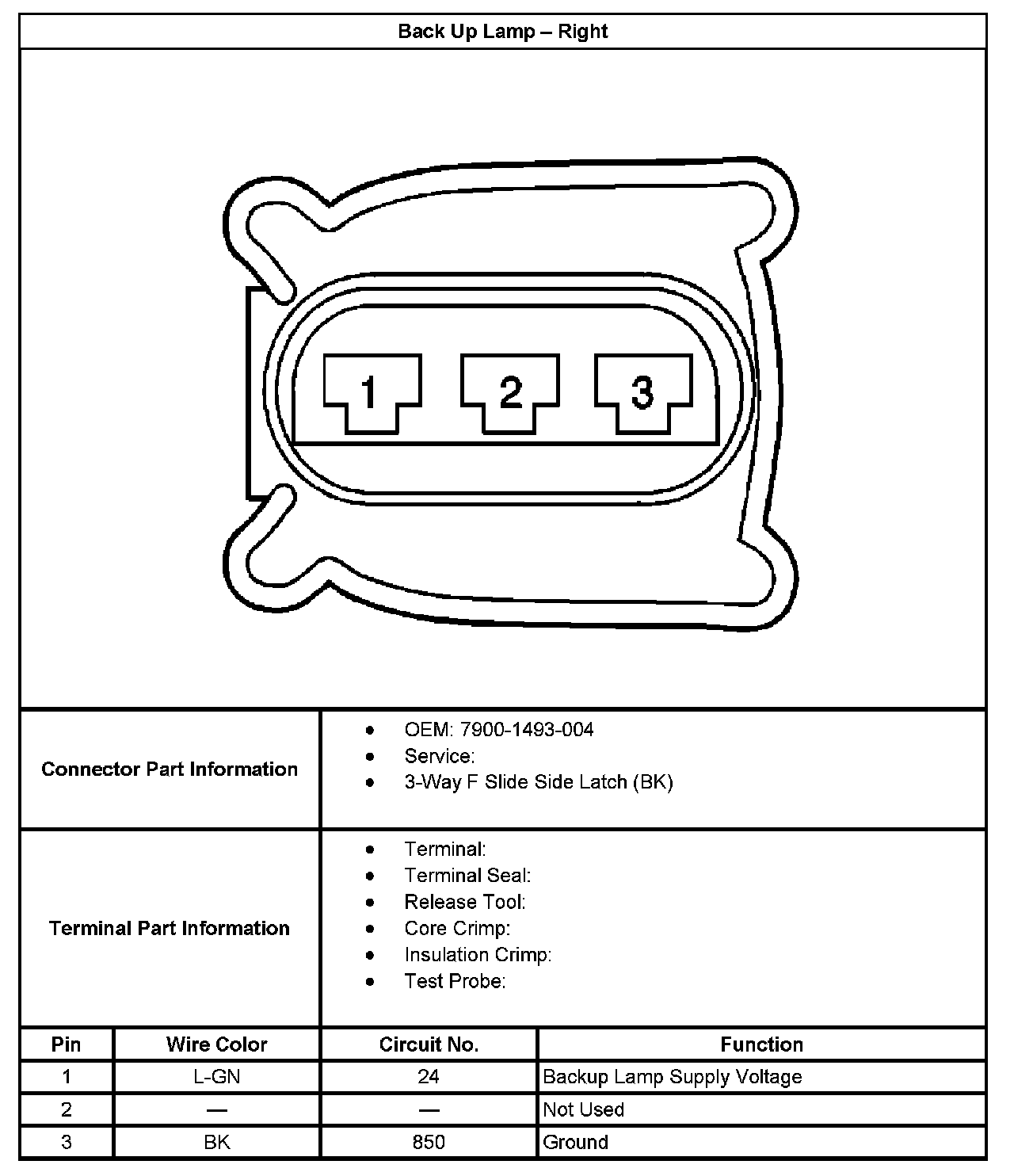

Back Up Lamp - Right:
