Cadillac
>>
2004
>>
CTS V6-3.2L VIN N
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
>>

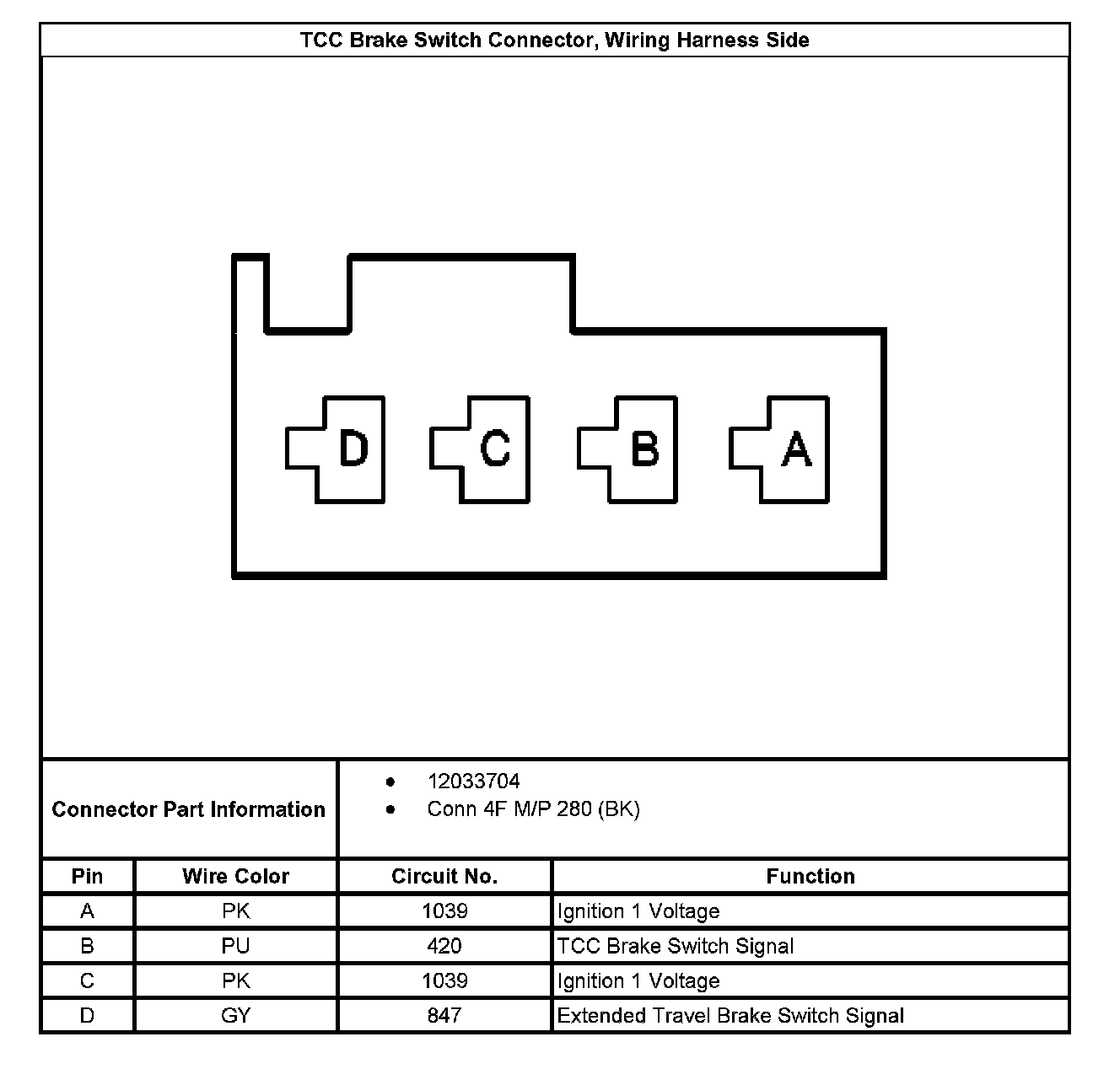

TCC Brake Switch Connector
TCC Brake Switch Connector
TCC Brake Switch Connector
