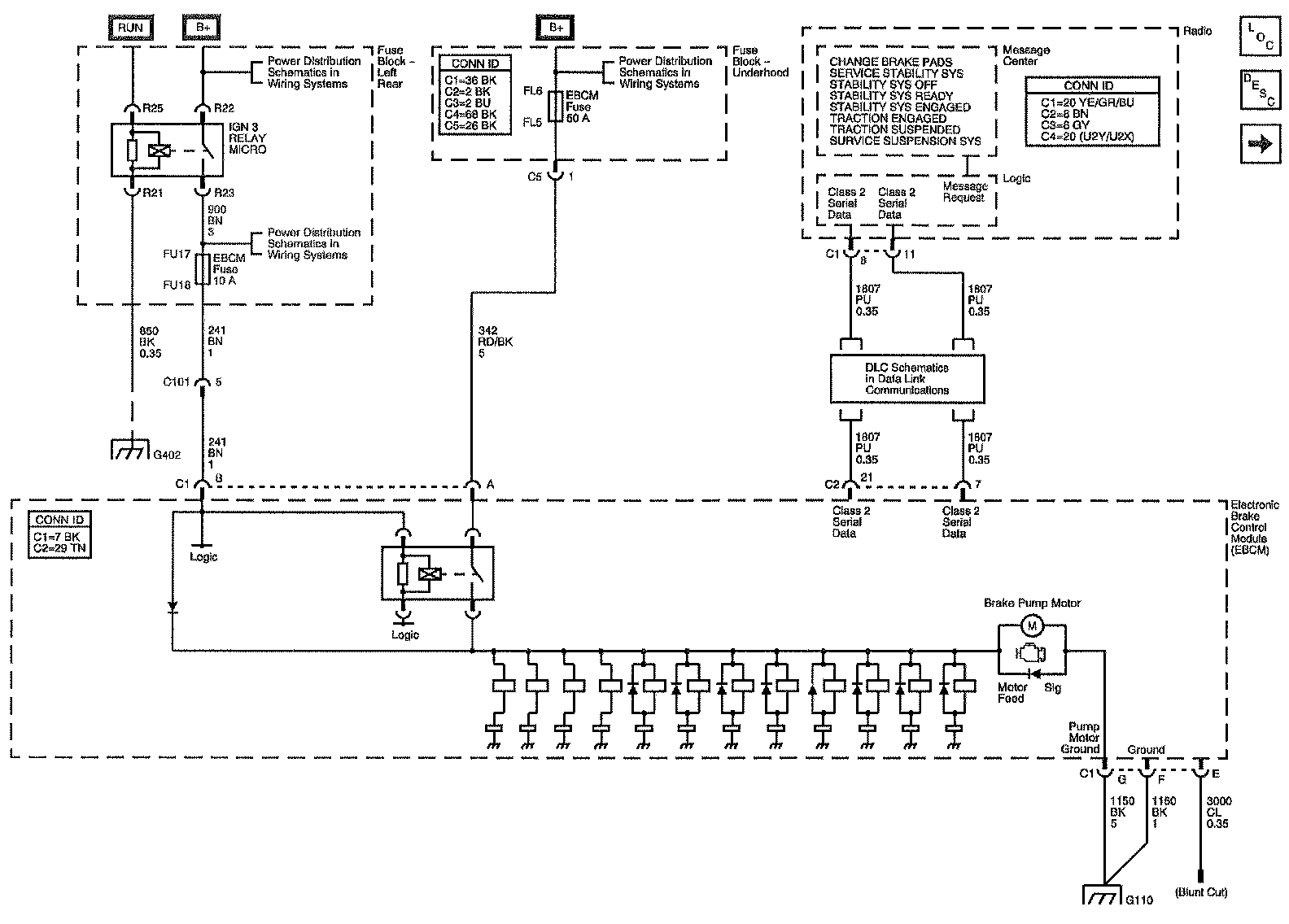

ABS Schematics (Module Power, Ground, and Serial Data)
ABS Schematics (Module Power, Ground, and Serial Data)
Module Power, Ground, and Serial Data
