Rear Integration Module (RIM) C2
Rear Integration Module (RIM) C2

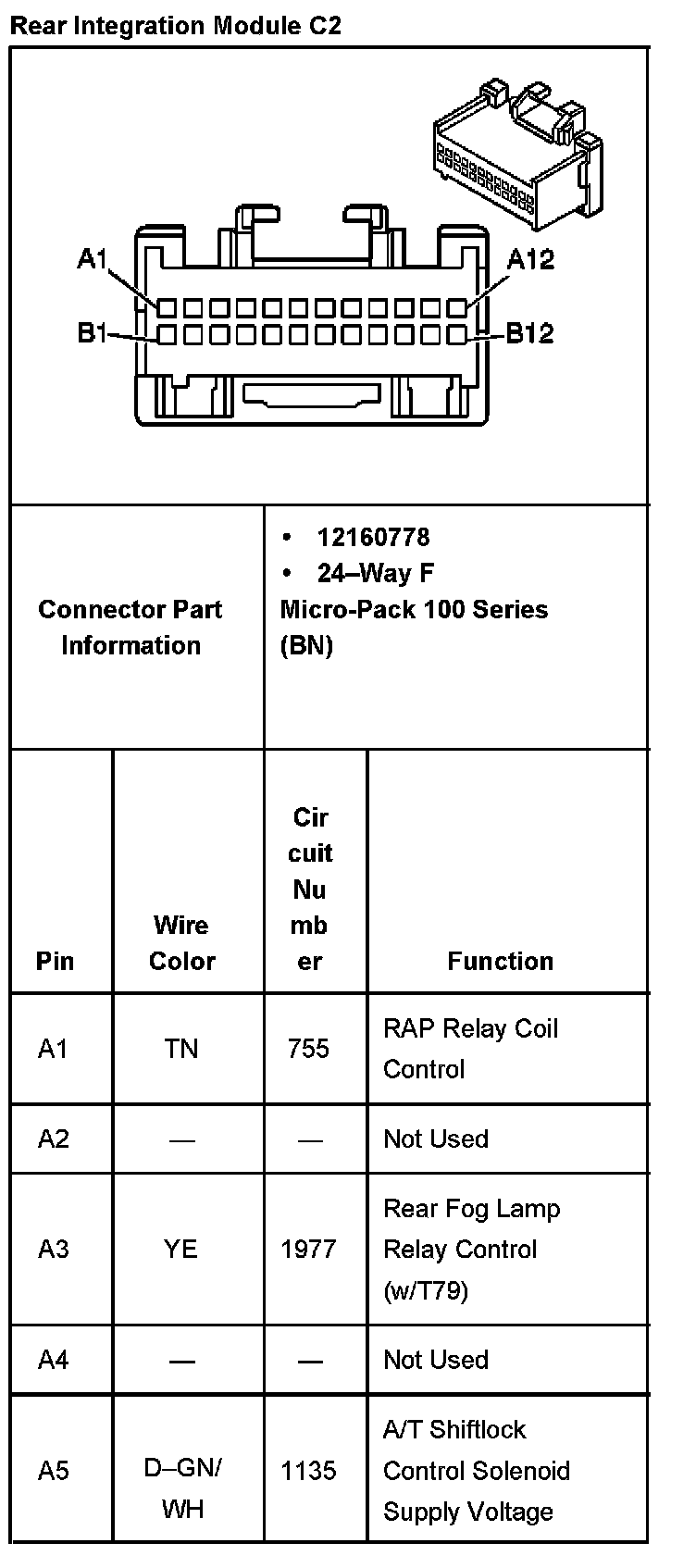

Rear Integration Module C2 Part 1:

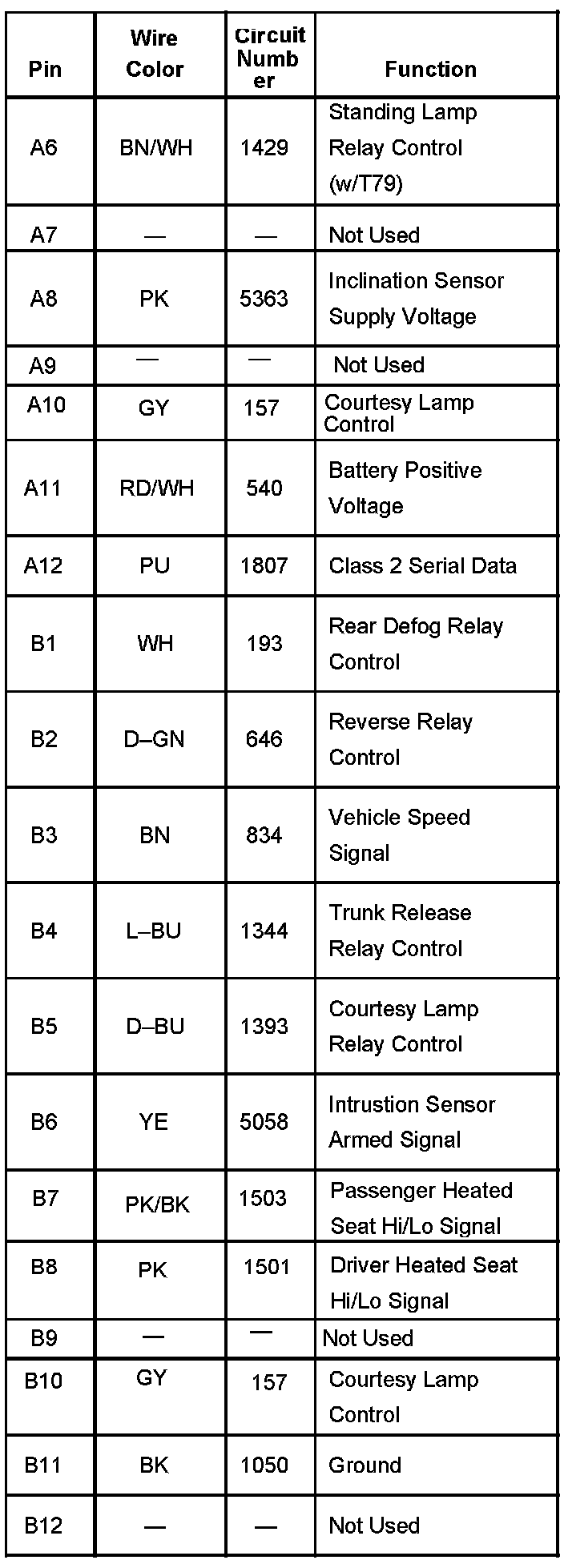

Rear Integration Module C2 Part 2:
