Class 2 Serial Data Line (RH Drive)
Class 2 Serial Data Line (RH Drive)

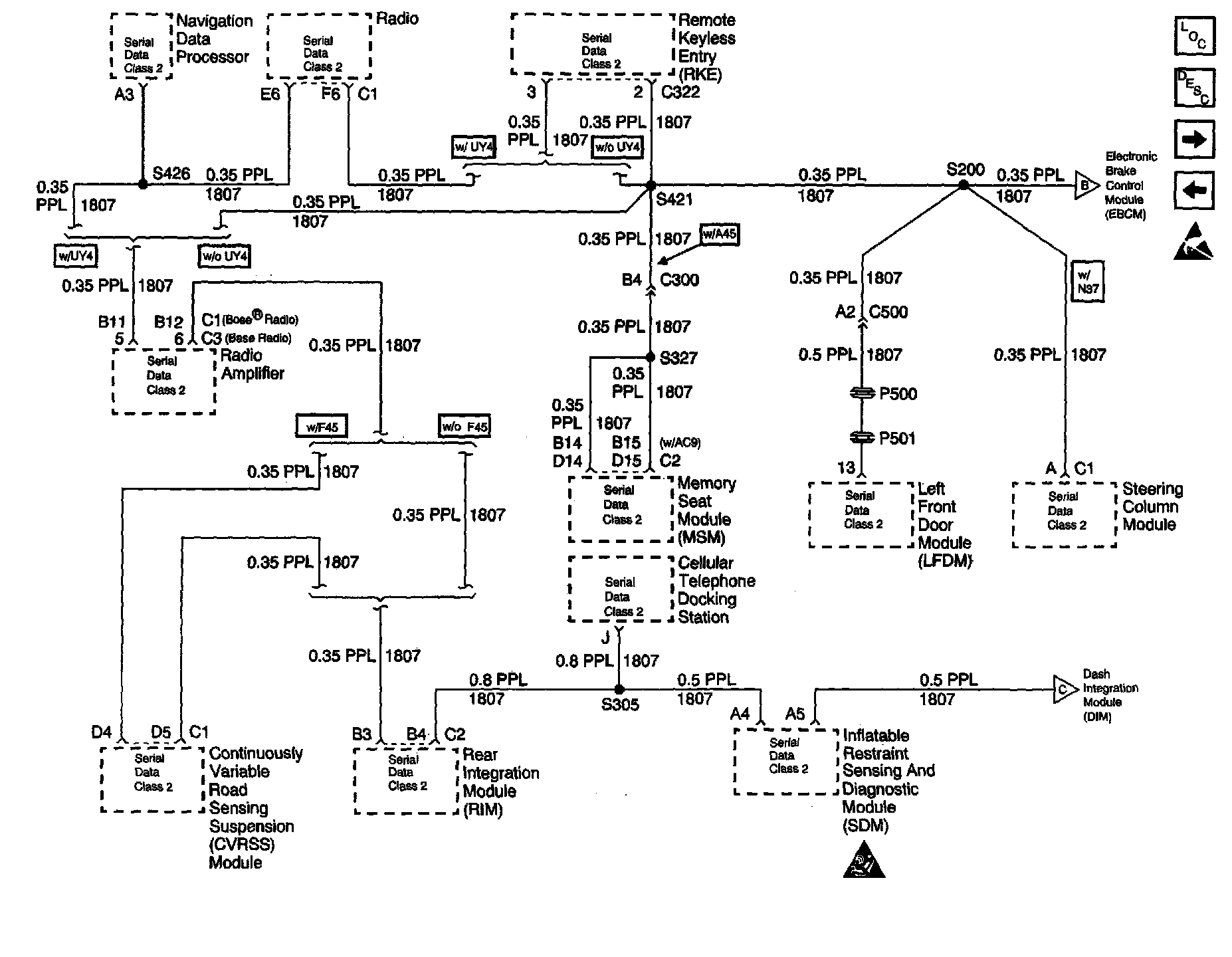

Data Link Connector (DLC) Schematics: Class 2 Serial Data Line (RH Drive):

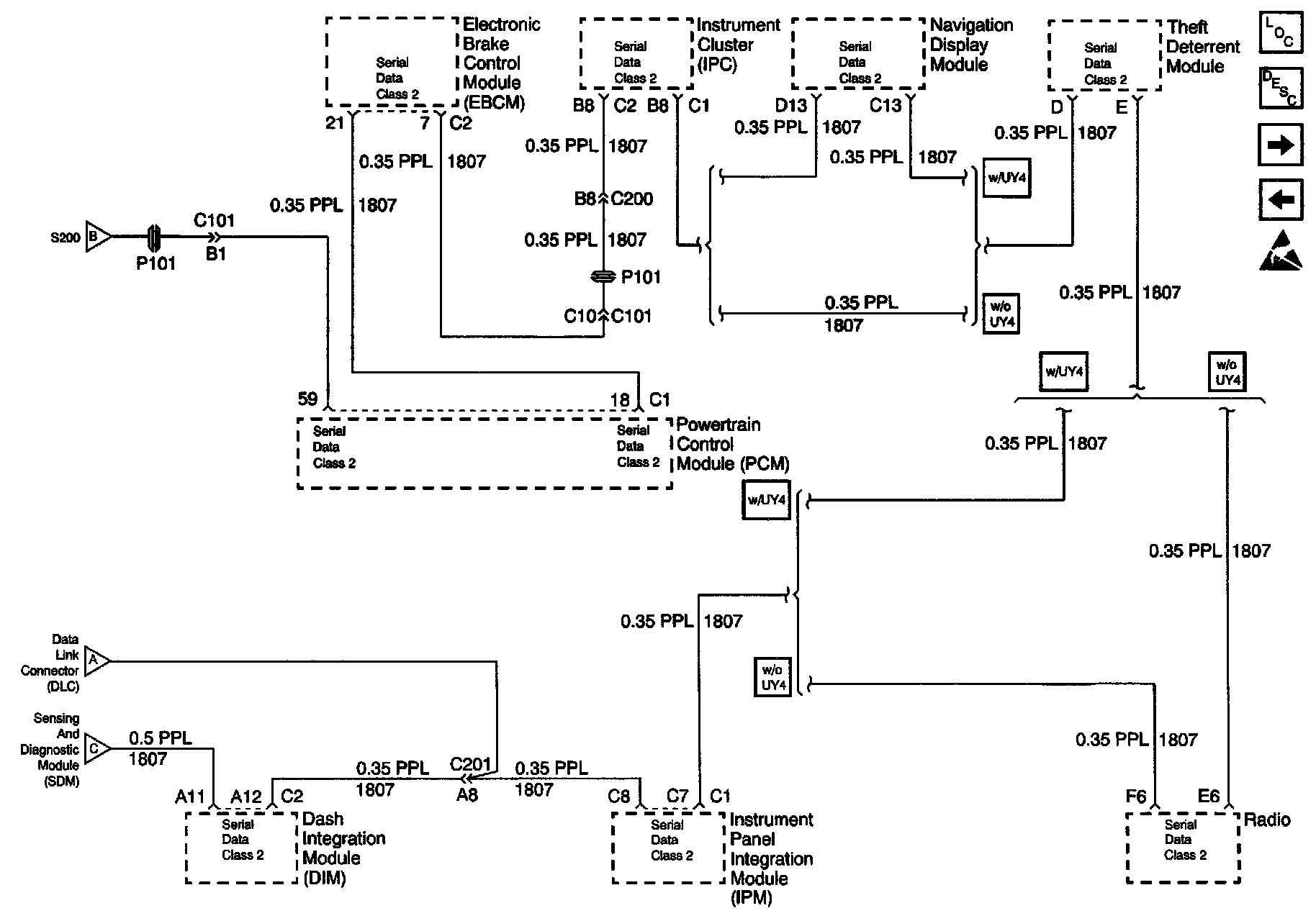

Data Link Connector (DLC) Schematics: Class 2 Seerial Data Line (RH Drive):
