Door Module
>>
RFDM Inputs And Outputs
RFDM Inputs And Outputs

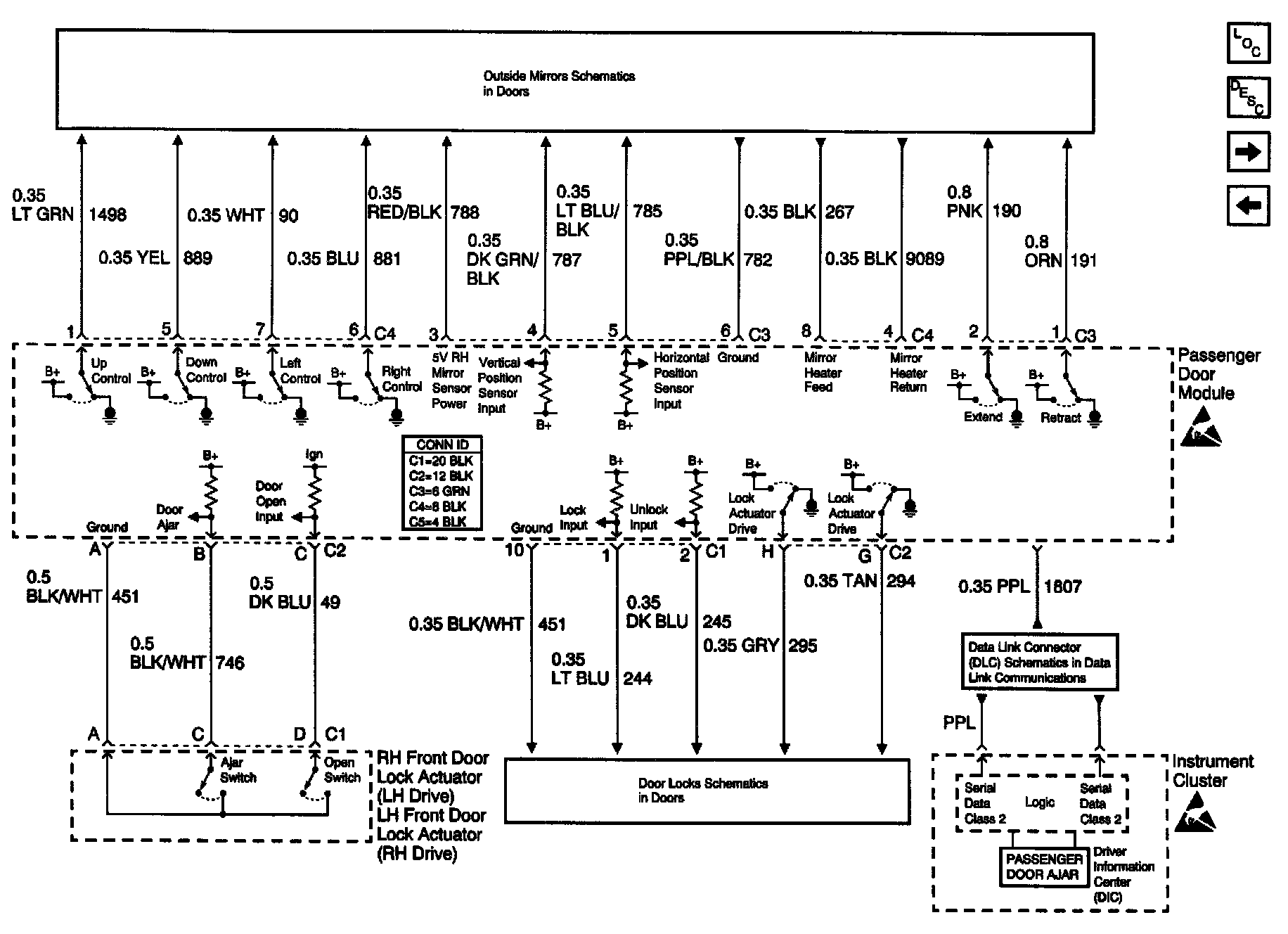

Door Control Module Schematics: RFDM Inputs And Outputs:
