Home >> Cadillac >> 2000 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> Seat Temperature Control Module >> Heated Seat Module C1, RH Rear

Heated Seat Module C1, RH Rear

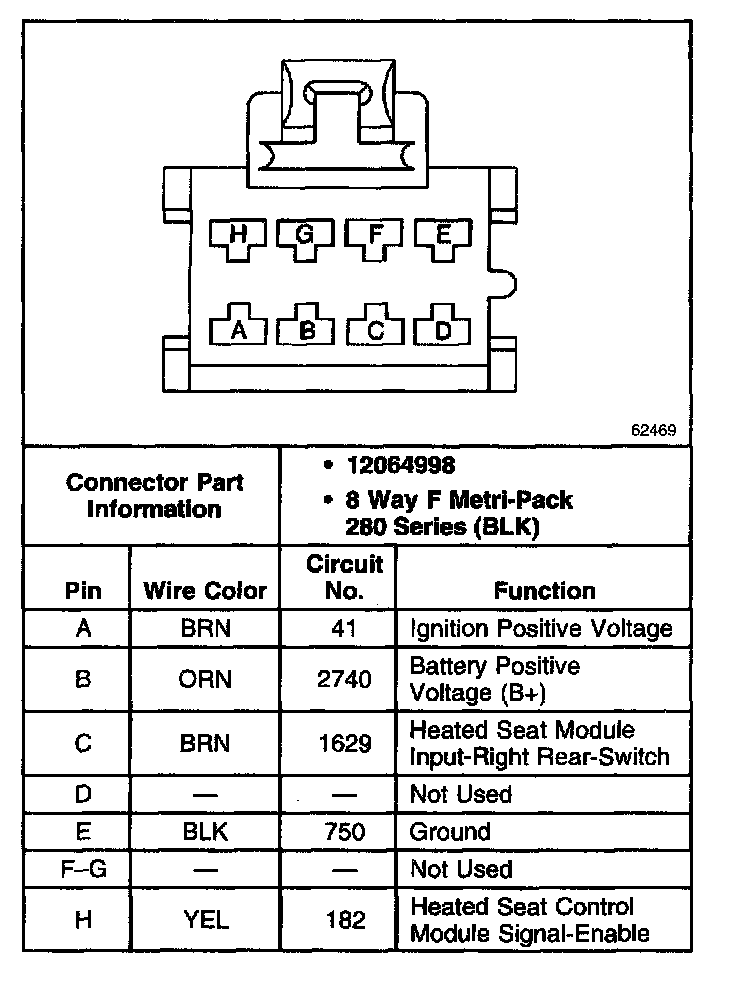

RH Rear Heated Seat Module C1:
