Cadillac
>>
2000
>>
Seville STS V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Shift Interlock, A/T
>>
Shift Interlock Switch
Shift Interlock Switch

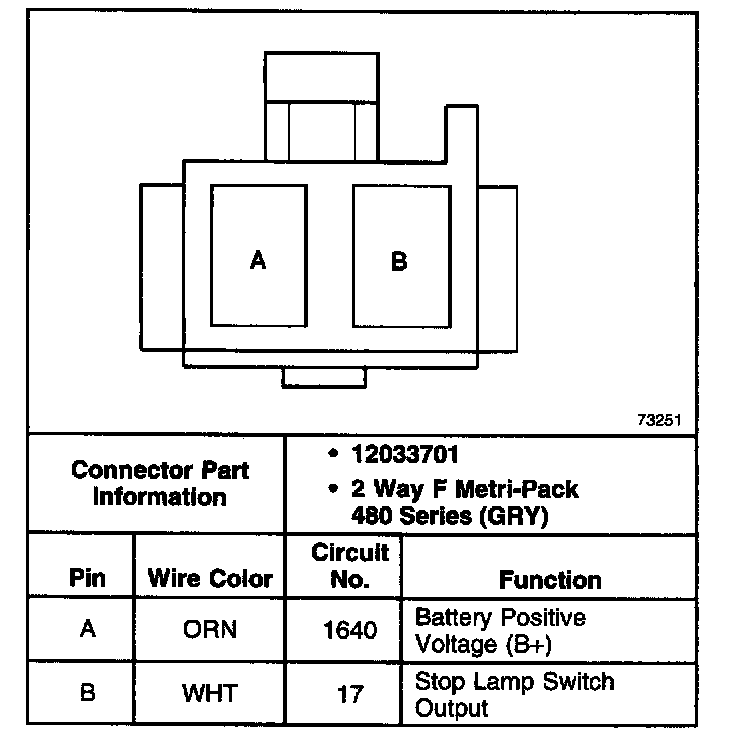

Stoplamp/Automatic Transmission Shift Lock Control Switch C1:
