Home
>>
Cadillac
>>
2000
>>
Seville STS V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Flow Meter/Sensor
Air Flow Meter/Sensor

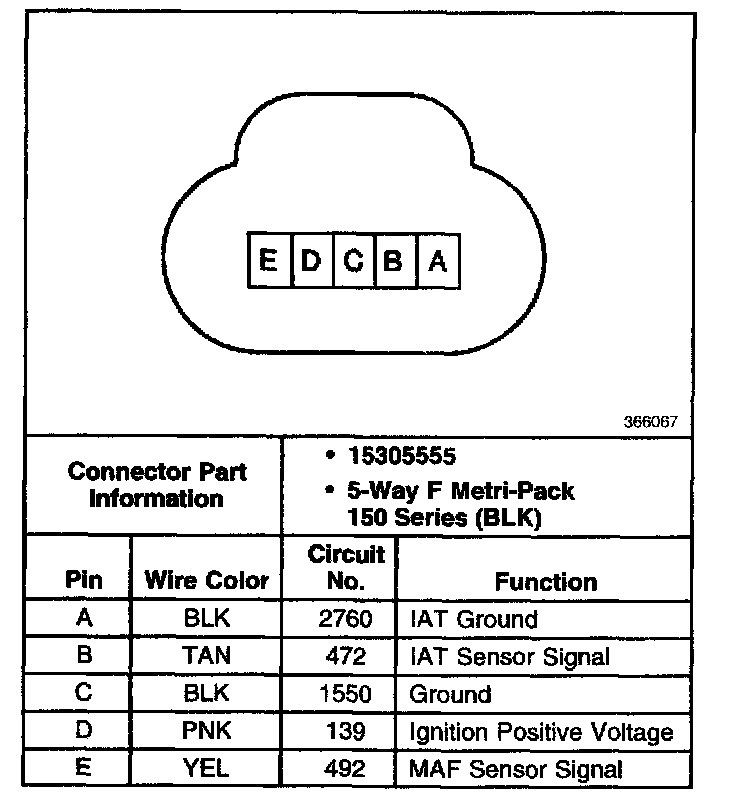

Mass Air Flow and Intake Air Temperature (MAF/IAT) Sensor:
