Cadillac
>>
1999
>>
DeVille V8-4.6L VIN Y
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Shift Interlock
>>
Shift Interlock Solenoid
>>
Diagrams
>>
Exploded Views
>>

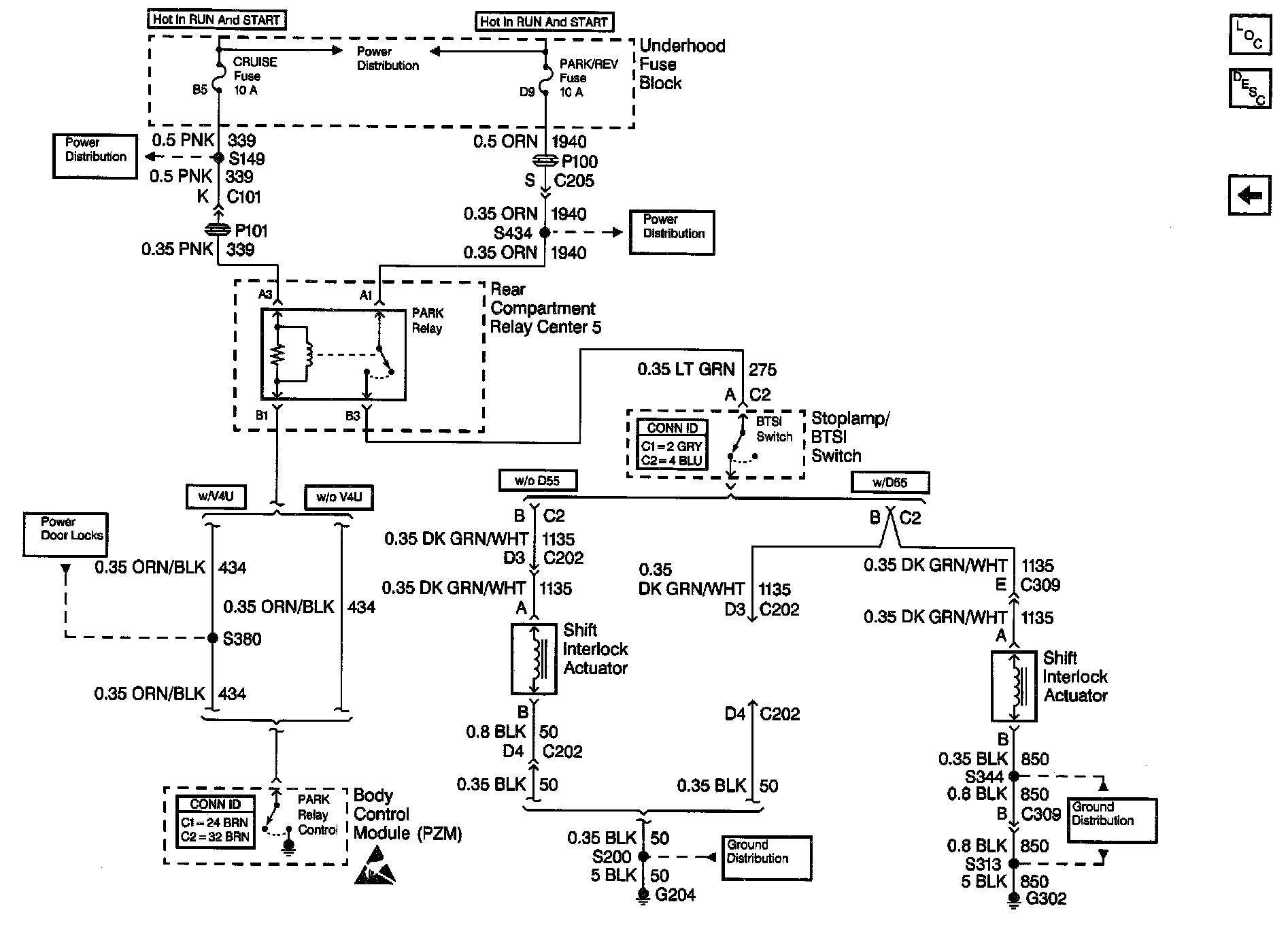

Cell 138: Shift Interlock Actuator
Cell 138: Shift Interlock Actuator
Cell 138: Shift Interlock Actuator:
