Home >> Cadillac >> 1999 >> DeVille V8-4.6L VIN Y >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Schematics By Component Name >> Fuses >> CLSTR

CLSTR

Power Distribution Schematics: BODY 3 FUSE:

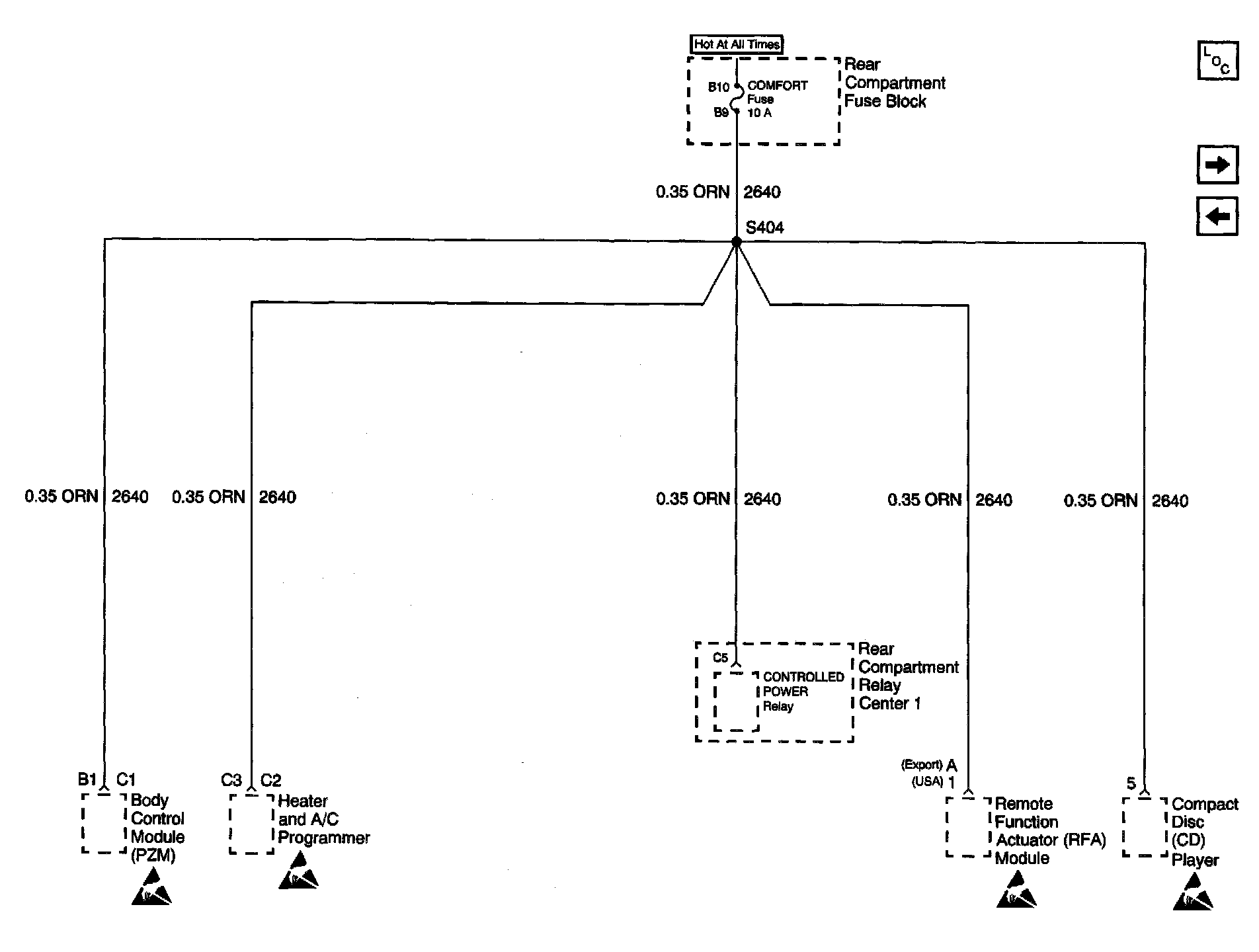

Power Distribution Schematics: COMFORT Fuse:
