Home >> Cadillac >> 1999 >> DeVille V8-4.6L VIN Y >> Repair and Diagnosis >> Heating and Air Conditioning >> Housing Assembly HVAC >> Diagrams

Housing Assembly HVAC: Diagrams

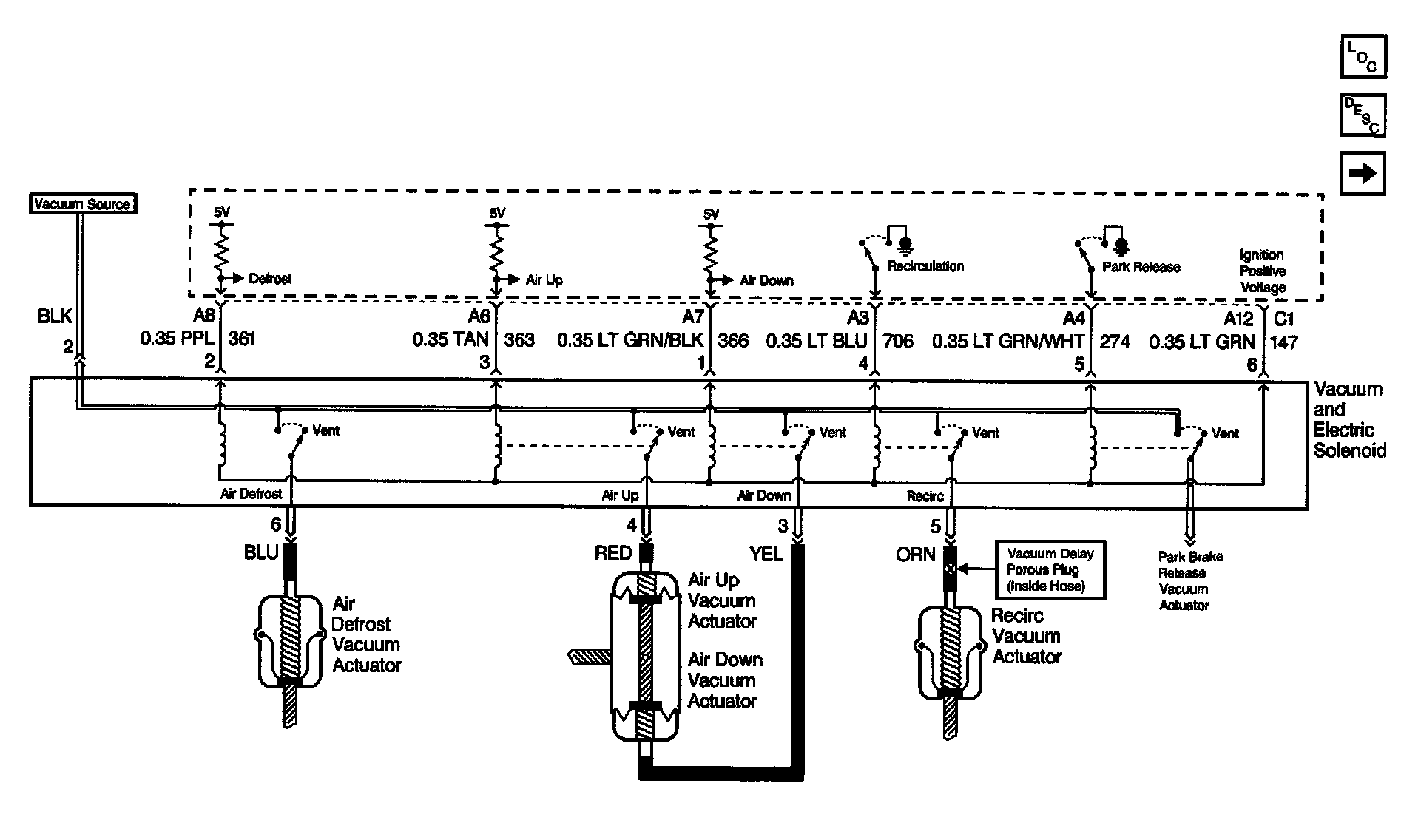

HVAC Air Delivery Schematics: Vacuum And Electric Solenoids:
