Cadillac
>>
1999
>>
DeVille V8-4.6L VIN Y
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Suspension Control ( Automatic - Electronic )
>>

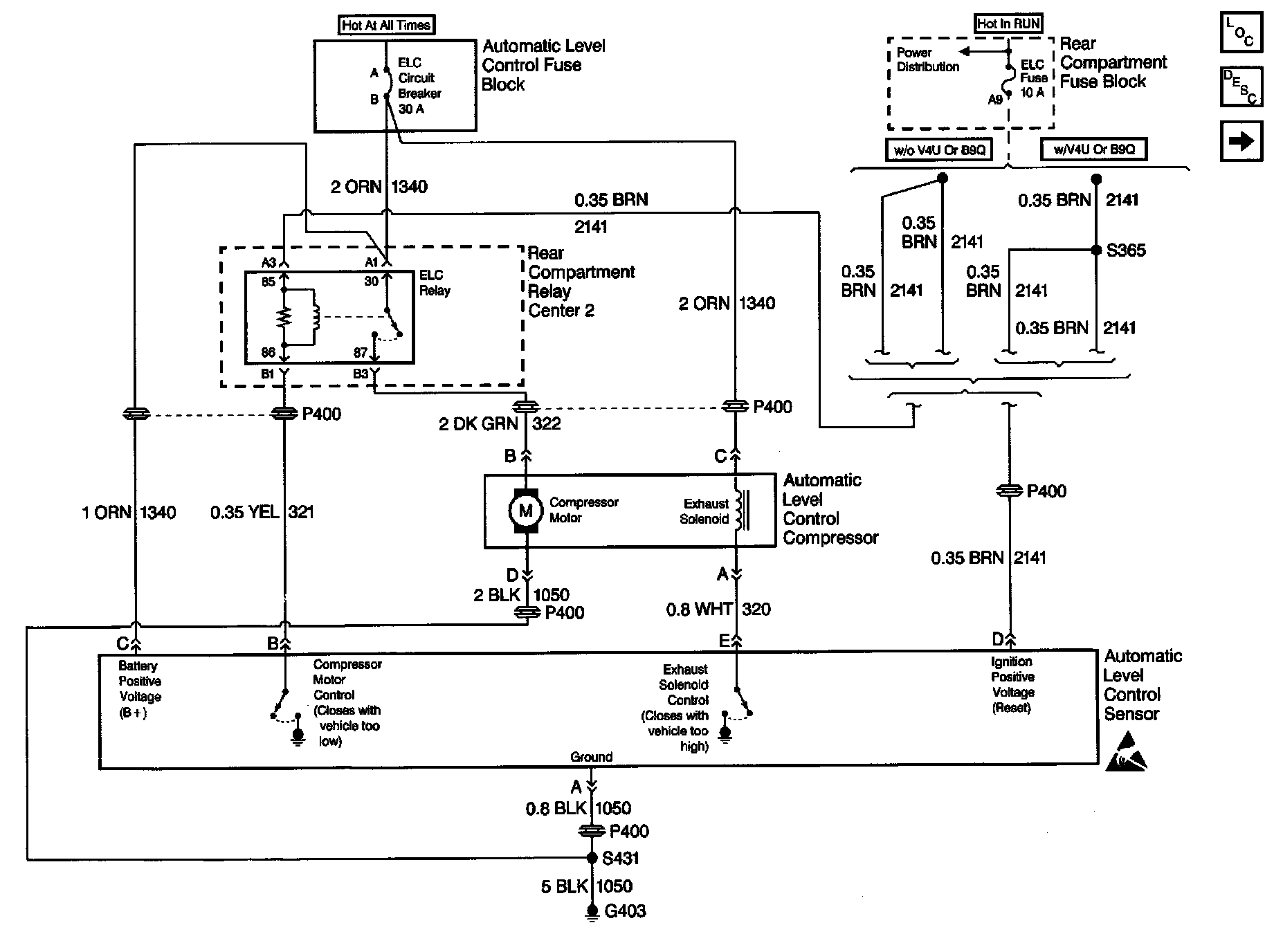

Automatic Level Control Suspension Schematics
>>
Cell 42: Automatic Level Control (Without F45)
Cell 42: Automatic Level Control (Without F45)
Cell 42: Automatic Level Control (Without F45):
