Cadillac
>>
1999
>>
DeVille V8-4.6L VIN Y
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heated Glass Element
>>
Defogger Schematics
Defogger Schematics

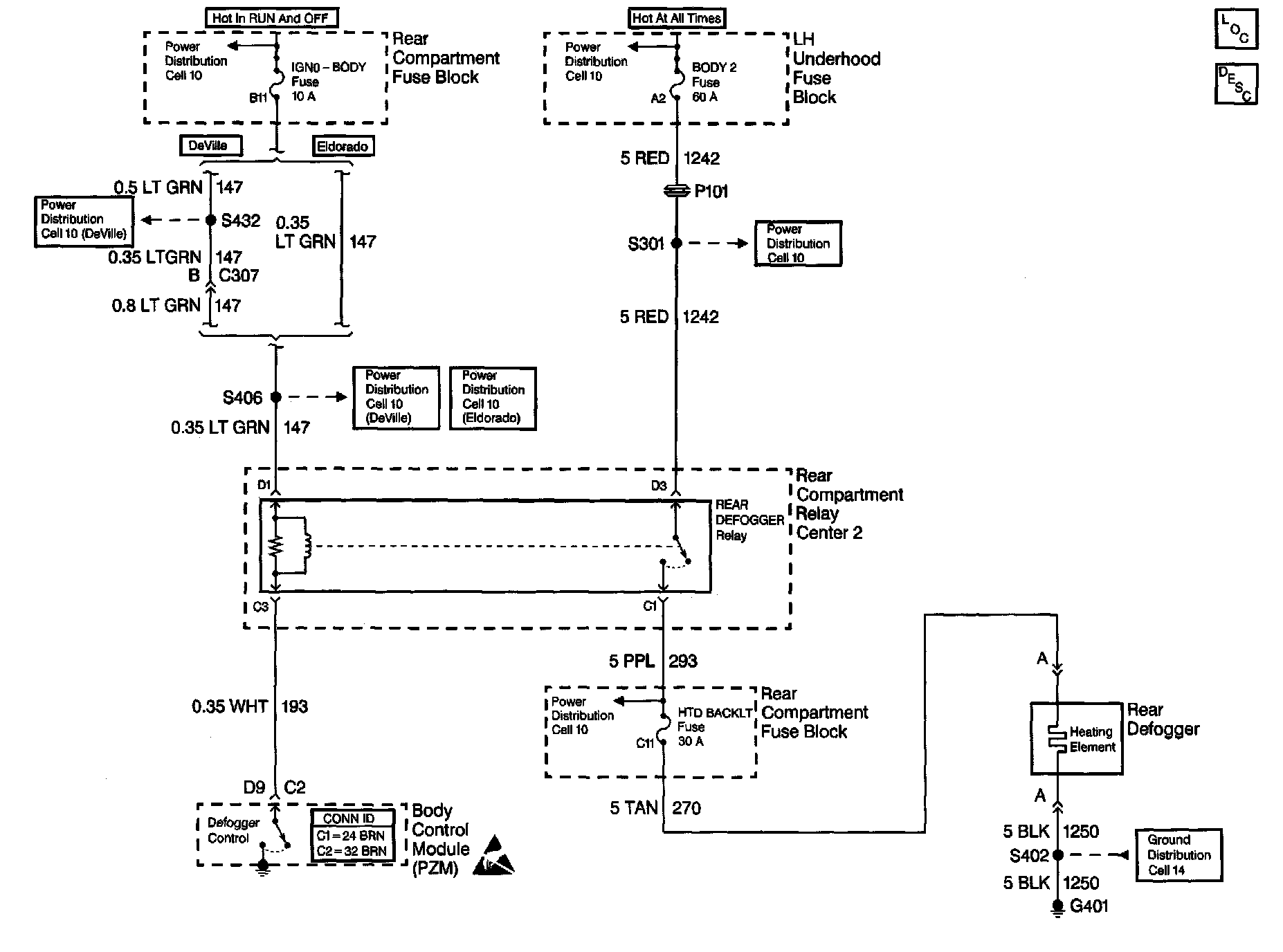

Defogger Schematics: HVAC Rear Defogger Schematics:
