Home >> Cadillac >> 1999 >> DeVille V8-4.6L VIN Y >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> System Diagram >> Seat Horizontal Position Sensor

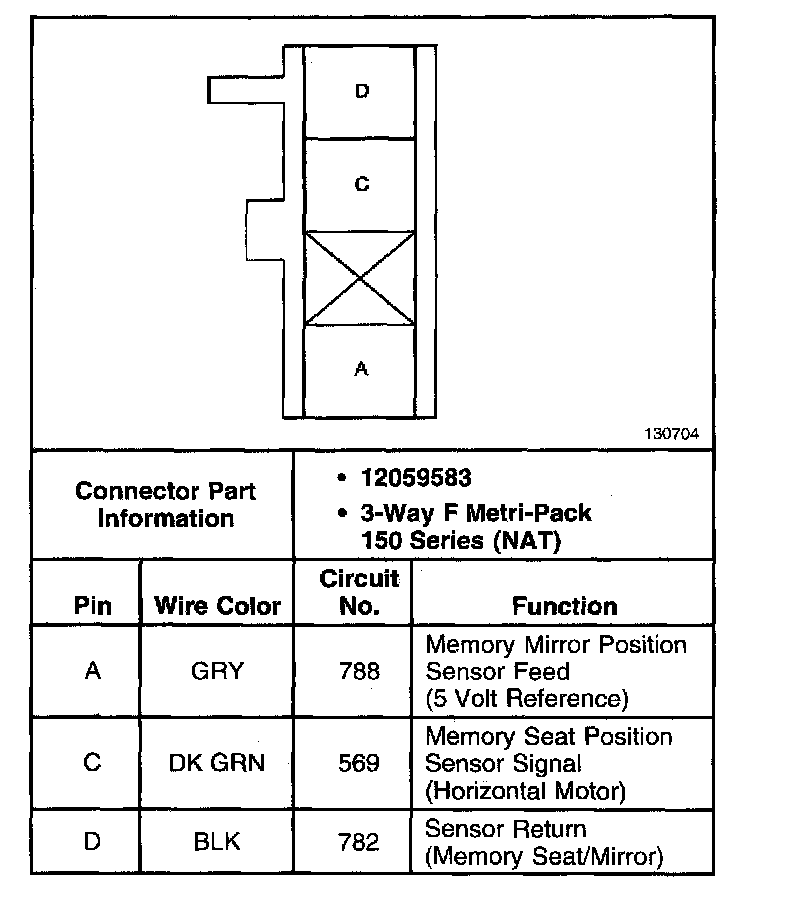

Seat Horizontal Position Sensor

Seat Horizontal Position Sensor:
