Home
>>
Cadillac
>>
1999
>>
DeVille V8-4.6L VIN Y
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seats
>>
Power Seat Relay
>>
Lumbar Relay
>>
Lumbar Horizontal Relay, RH
Lumbar Horizontal Relay, RH

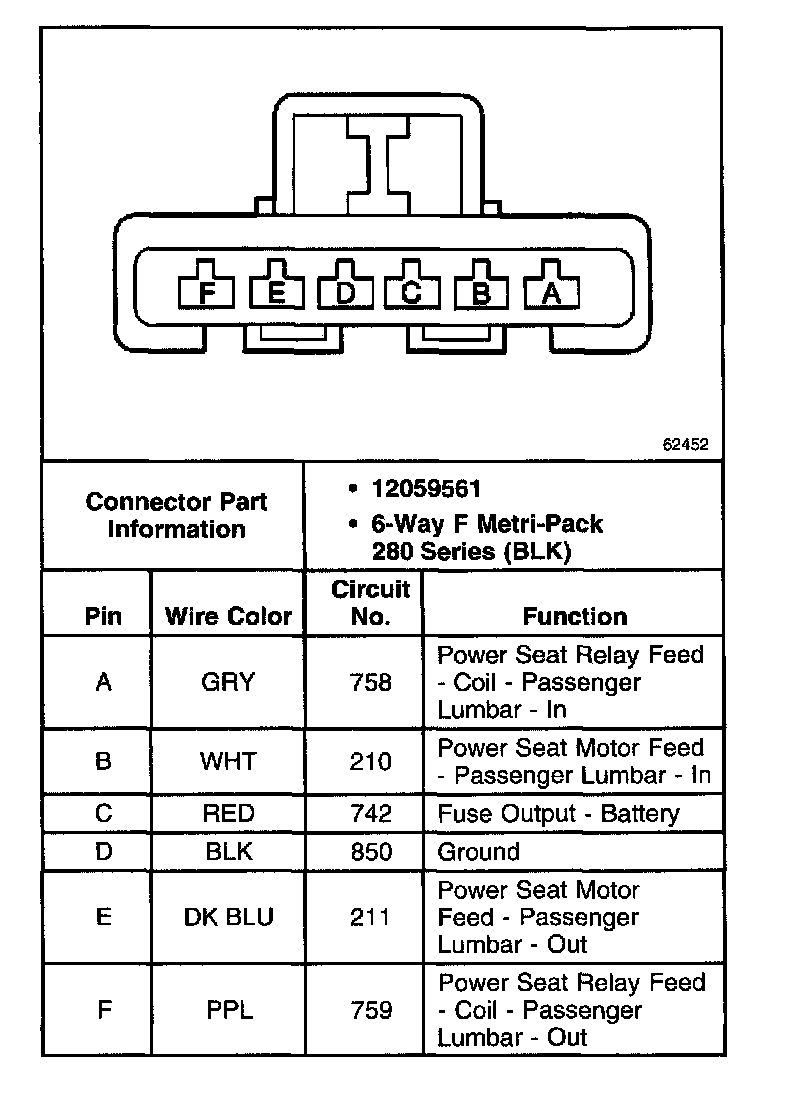

RH Lumbar Horizontal Relay:
