EGR - DTC P0400 Set, New Calibration

File In Section: 6E - Engine Fuel & Emission

Bulletin No.: 77-65-09

Date: March, 1997

Subject:
DTC P0400 Set (Install Flash Calibration)

Models:
1996 Cadillac Fleetwood Limousines
with 5.7L Engine (VIN P - RPO LT1) and 4L60-E Transmission
with RPO Options V4U and B9Q

Condition

Some vehicles with Limousine stretch packages may set a DTC P0400.

Cause

The stretch Limousine package has a less restrictive exhaust system. The exhaust system causes the exhaust back pressure values to be slightly lower
which effects the EGR (Exhaust Gas Recirculation) calibration.

Correction

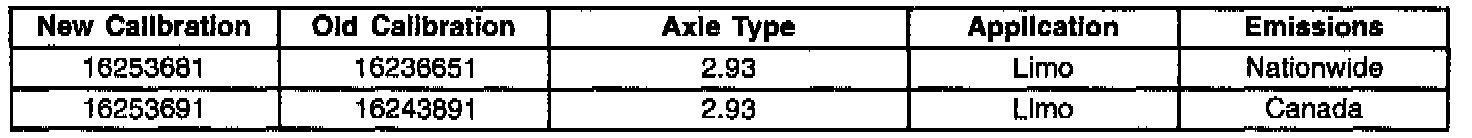

Install Flash Calibration listed.

Warranty Information

For vehicles repaired under warranty, use:

Labor Operation Labor Time

J6355 Use published labor operation time.
