Powertrain Control Module (PCM) Replacement

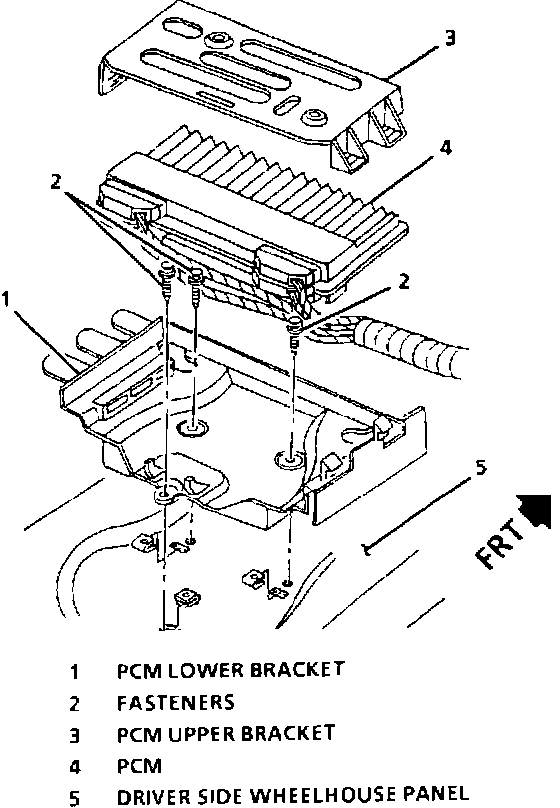

PCM With Bracket:

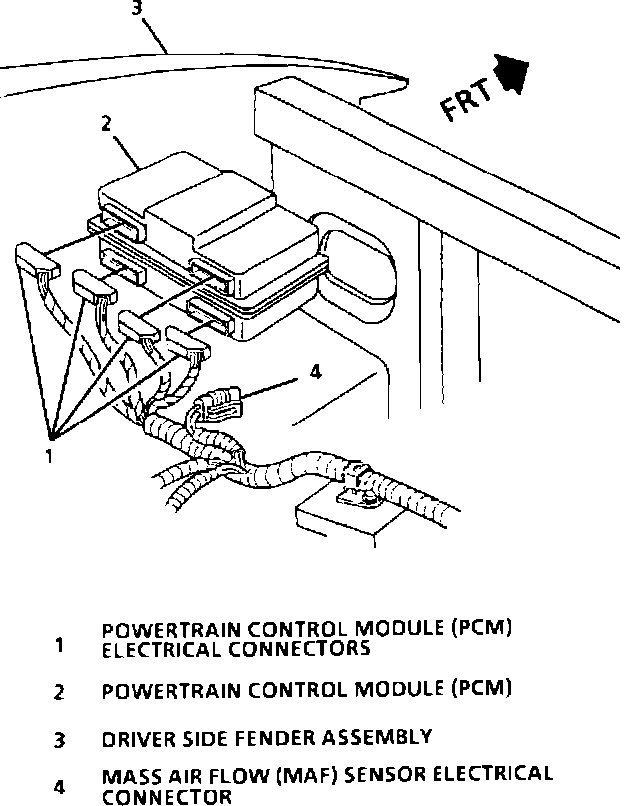

PCM Removal And Installation:

PCM With Knock Sensor Module:

Removing Knock Sensor Module From PCM:

Remove or Disconnect
1. PCM from mounting hardware.

2. Harness connectors from PCM.

3. PCM from engine compartment.

4. Knock Sensor (KS) Module access cover.

5. KS Module.

Install or Connect
1. KS Module to PCM.

2. KS Module access cover to PCM.

3. Connectors to PCM.

4. PCM into vehicle.

5. If a new PCM is being installed, program the EEPROM.
