Chart C Accessory Time Delay Cut-Off (RAP Power) Relay Test
Chart C Accessory Time Delay Cut-Off (RAP Power) Relay Test

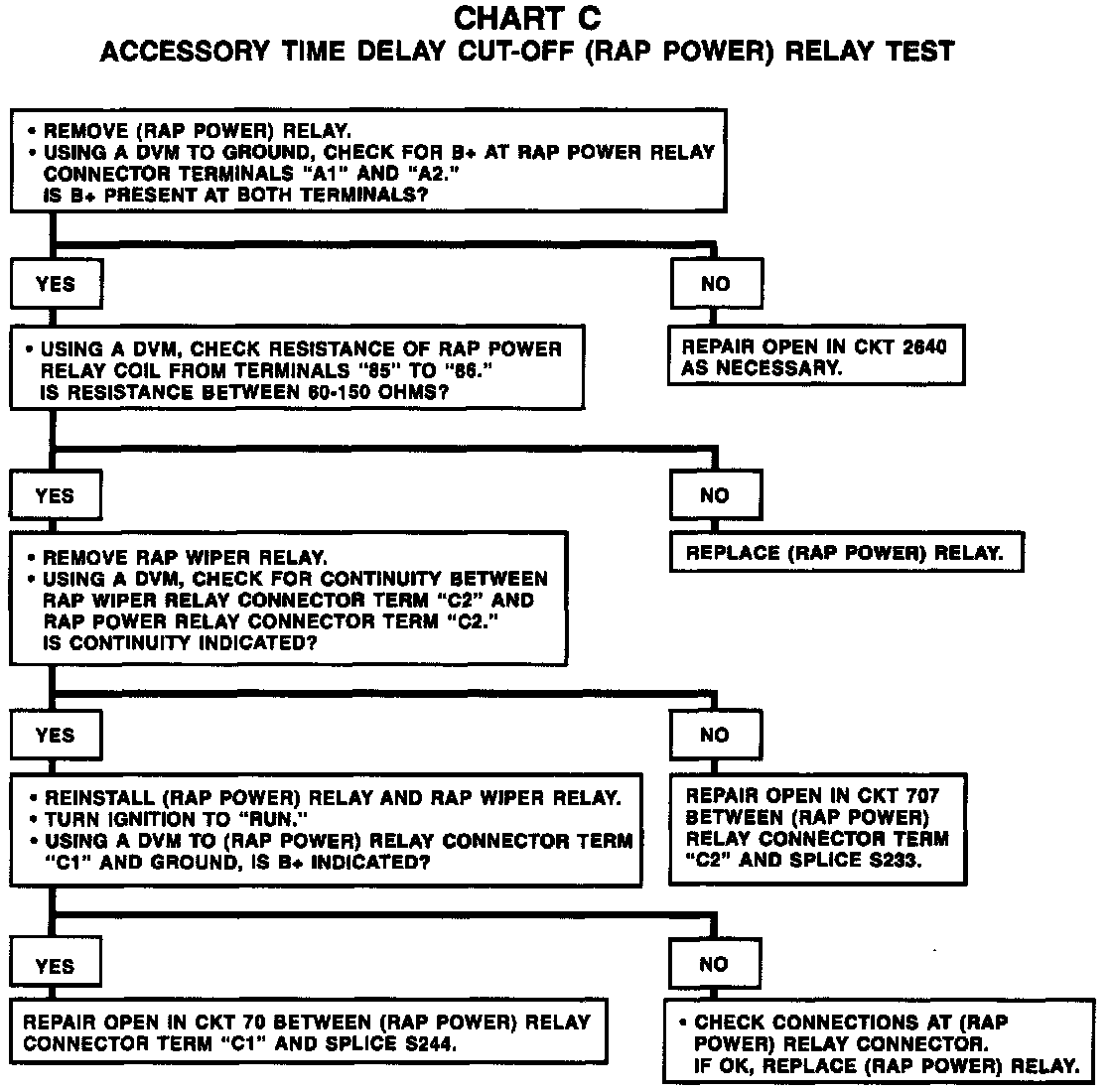

Chart C: Accessory Time Delay Cut-off (RAP Power) Relay Test:
