Purge Flow Sensor: Service and Repair

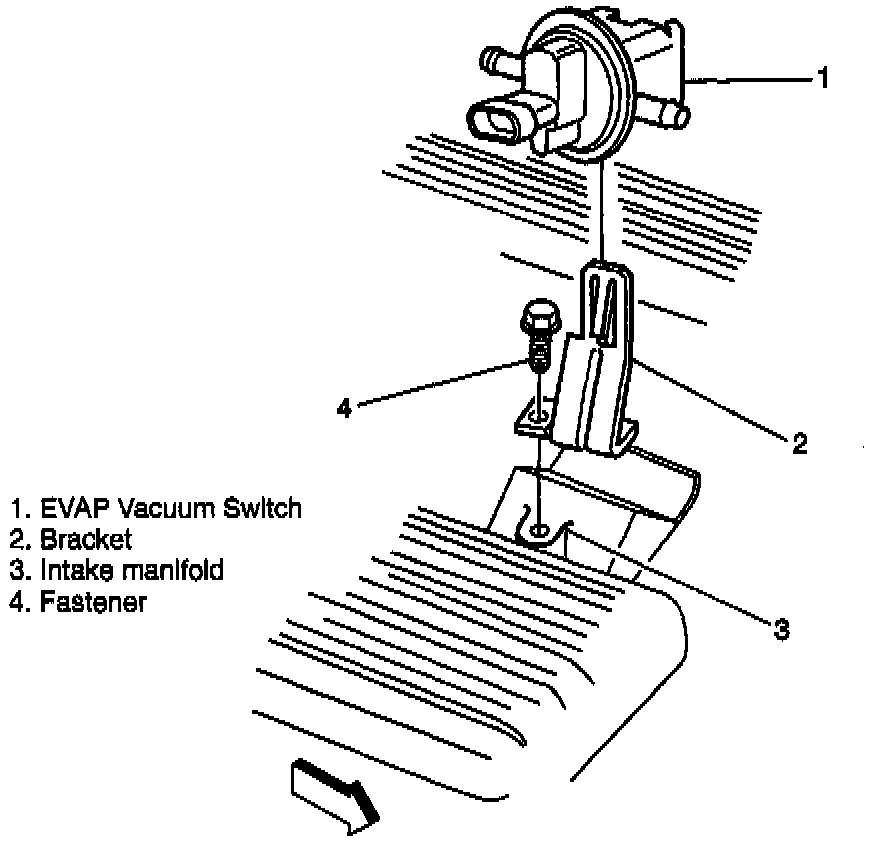

EVAP Vacuum Switch:

Remove or Disconnect
1. Electrical connector.
2. Vacuum lines.
3. Switch from bracket.

Install or Connect
1. Switch to bracket.
2. Vacuum lines.
3. Electrical connector.
