C3-Clear or Gray

Connector "C3" Symptoms Table 32 Pin Connector (Clear Or Gray) (1 Of 2):

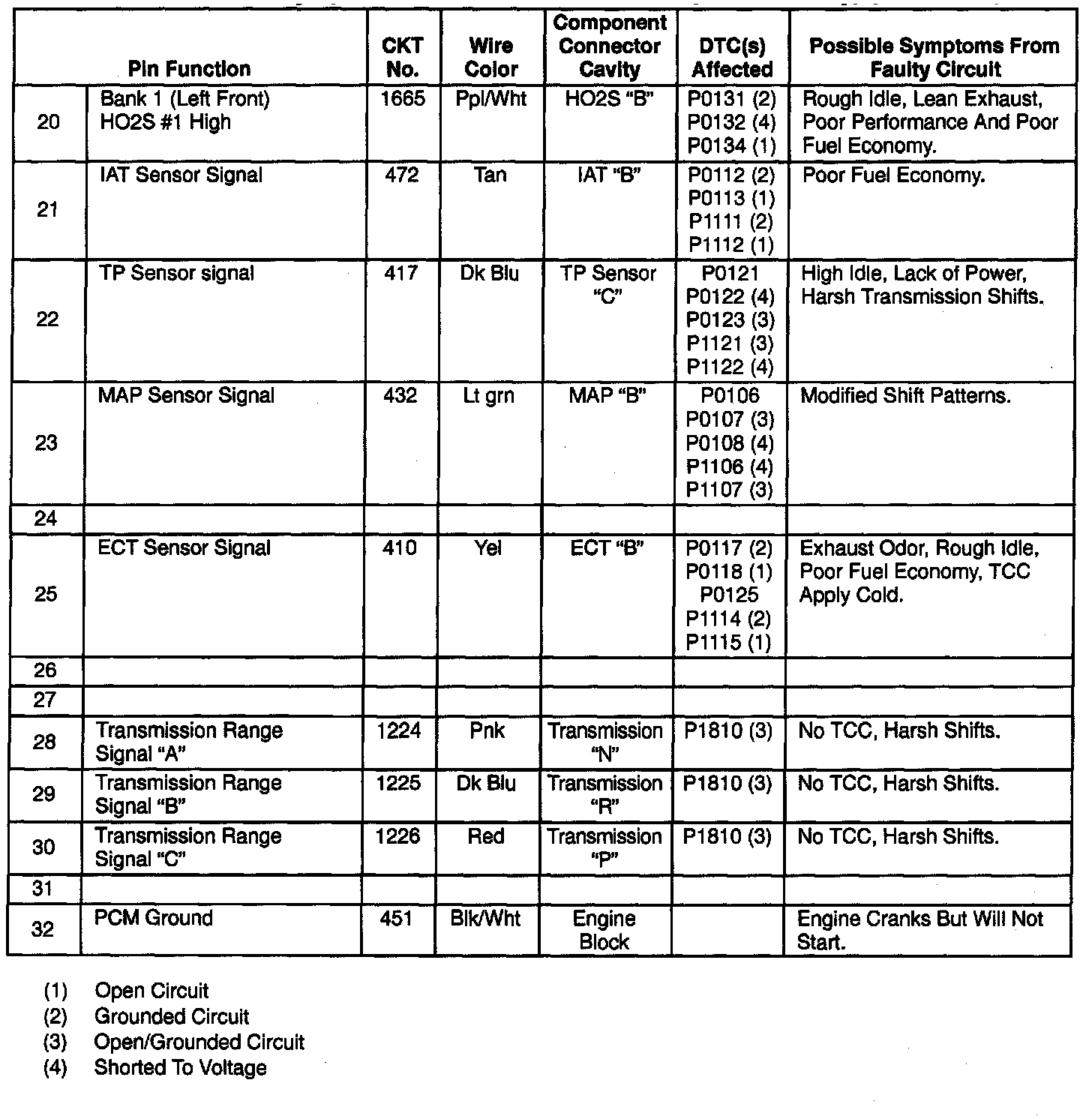

Connector "C3" Symptoms Table 32 Pin Connector (Clear Or Gray) (2 Of 2):

Footnotes
1. Open circuit.
2. Grounded circuit.
3. Open/Grounded circuit.
4. Shorted to voltage.
* Refer to Wiring Diagrams.
