C1-Red

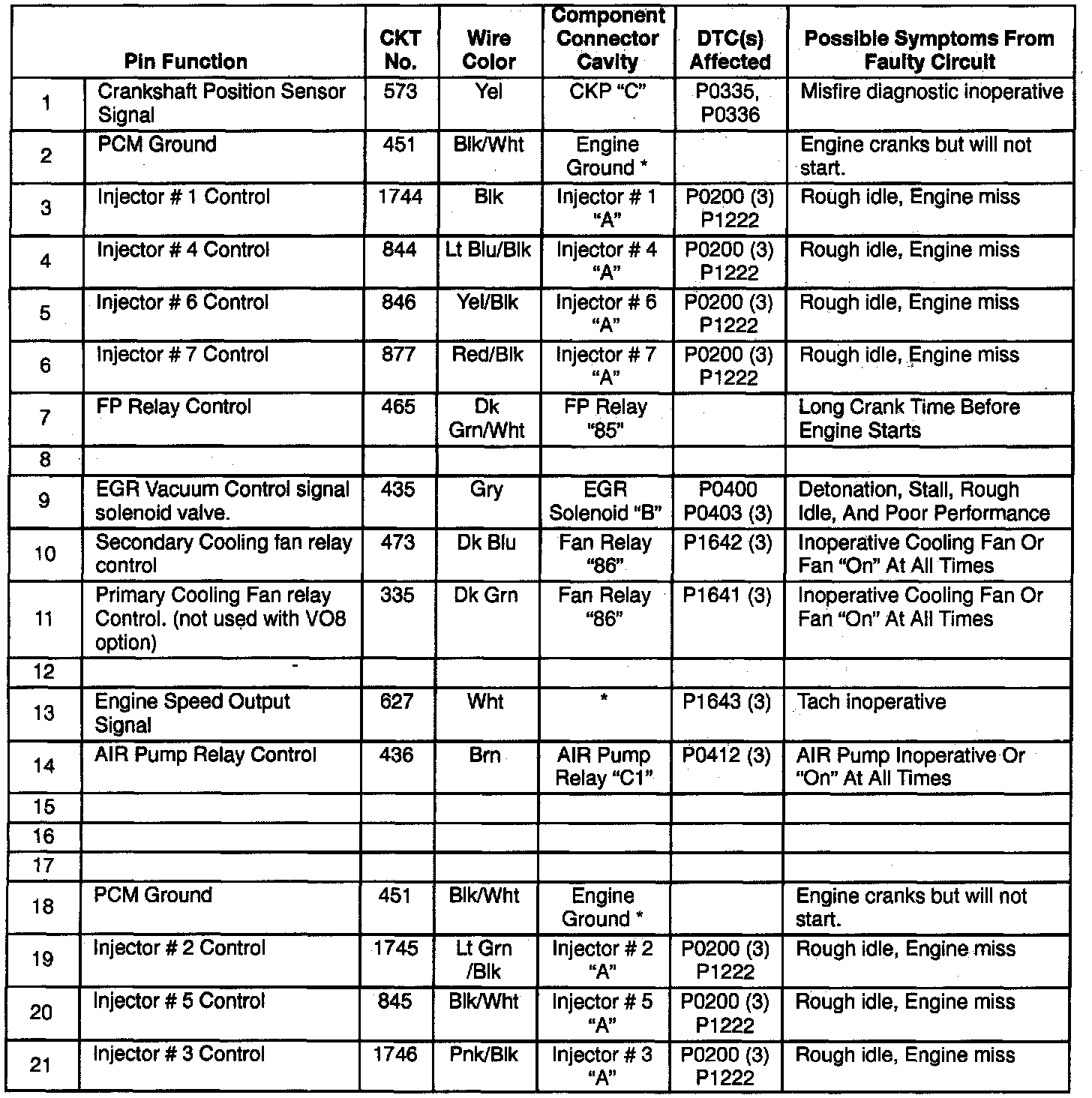

Connector "C1" Symptoms Table 32 Pin Connector (Red) (1 Of 2):

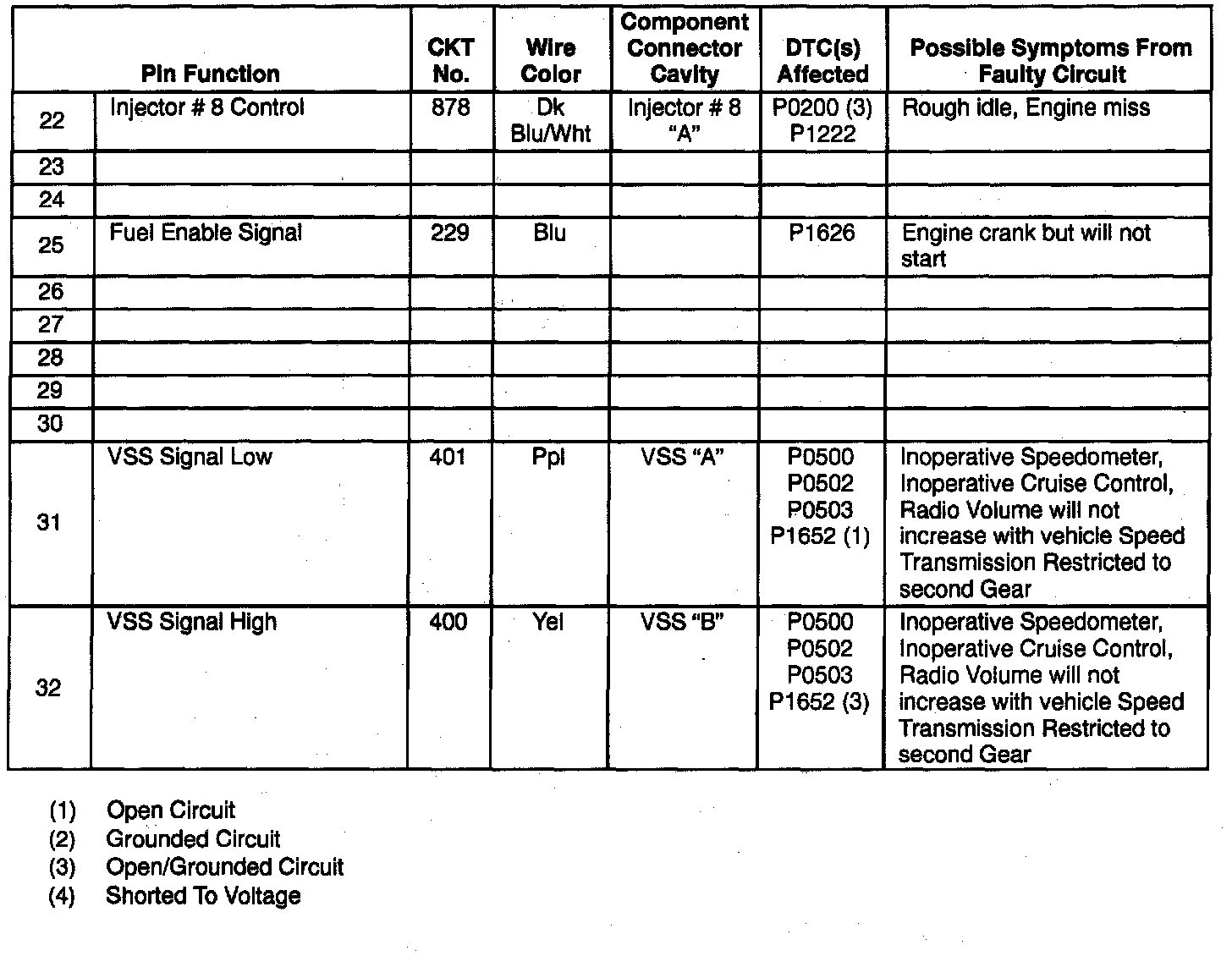

Connector "C1" Symptoms Table 32 Pin Connector (Red) (2 Of 2):

Footnotes
1. Open circuit.
2. Grounded circuit.
3. Open/Grounded circuit.
4. Shorted to voltage.
* Refer to Wiring Diagrams.
