Crankshaft Position Sensor: Service and Repair

Crankshaft Position Sensor:

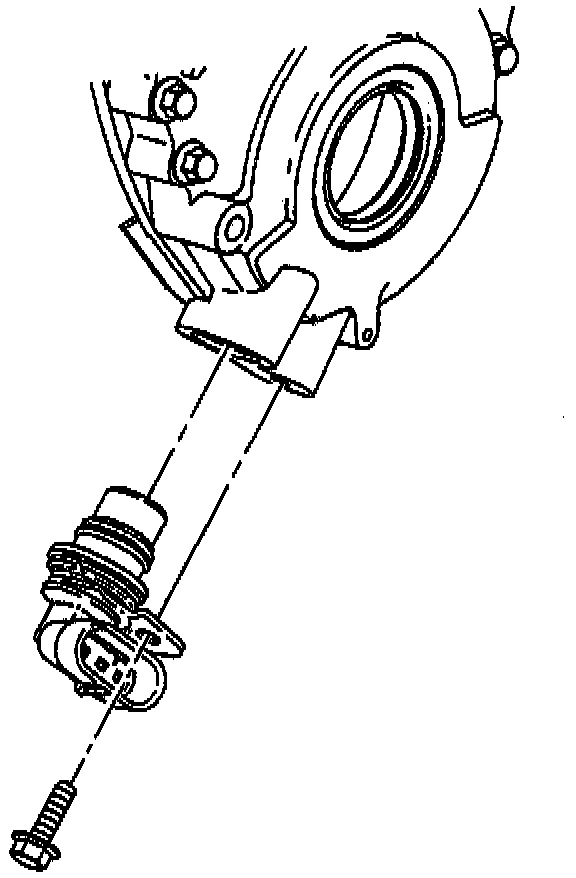

Remove or Disconnect

1. Raise vehicle.

2. Electrical connector from crankshaft position sensor.

3. Crankshaft position sensor retaining screw.

4. Crankshaft position sensor.

Install or Connect

1. Crankshaft position sensor.

2. Crankshaft position sensor retaining screw, torque to 4-6 Nm (35-53 lb in).

3. Electrical connector.
