Cadillac
>>
1996
>>
Fleetwood Brougham V8-350 5.7L VIN P MFI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>

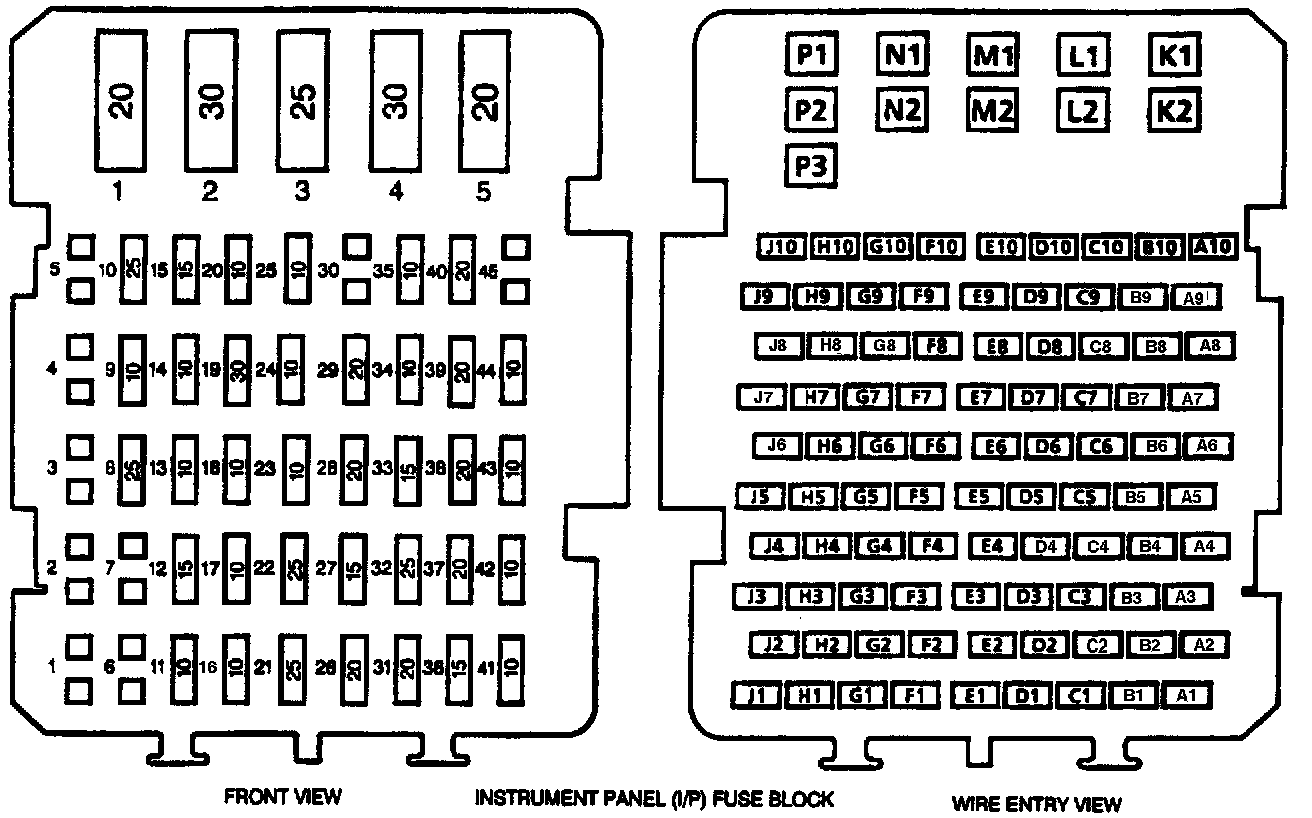

Instrument Panel (I/P) Fuse Block
Instrument Panel (I/P) Fuse Block

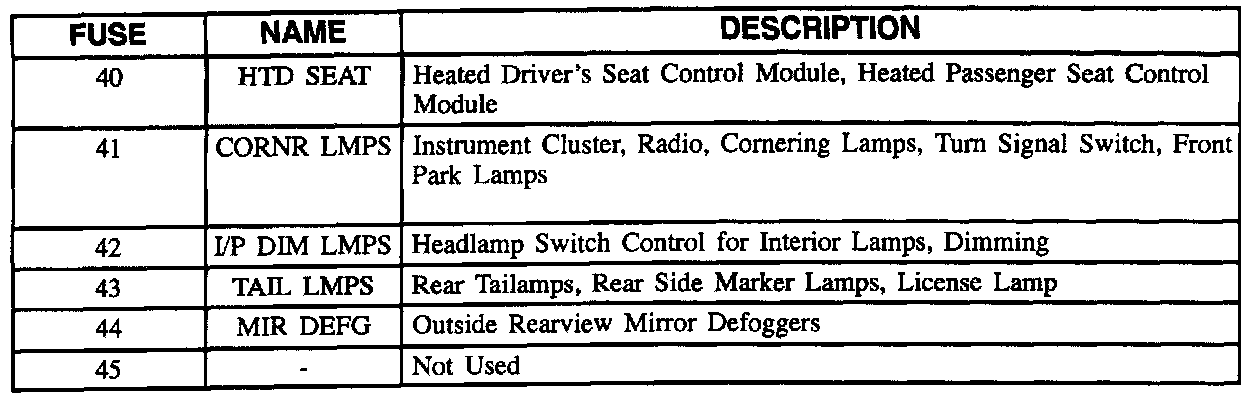

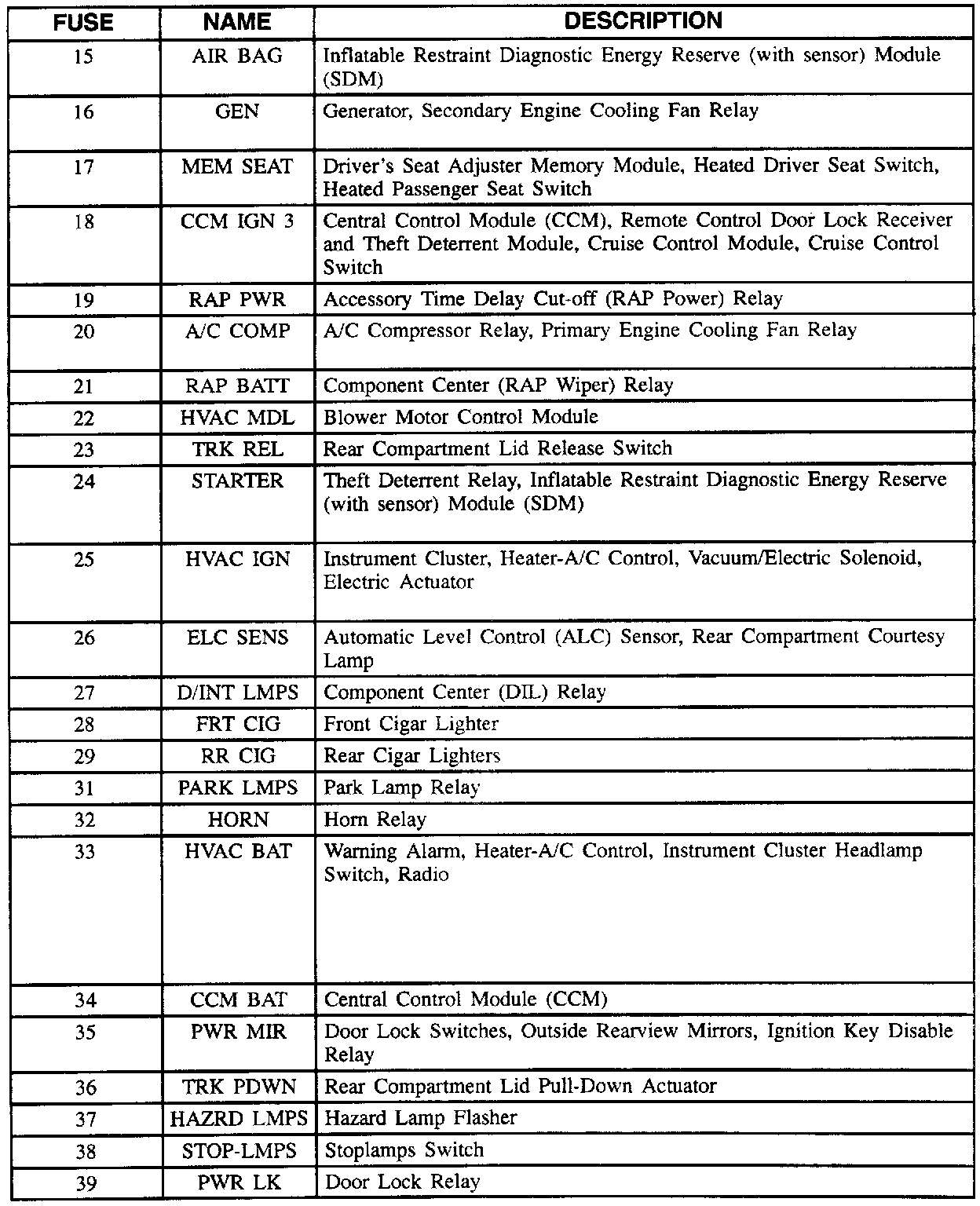

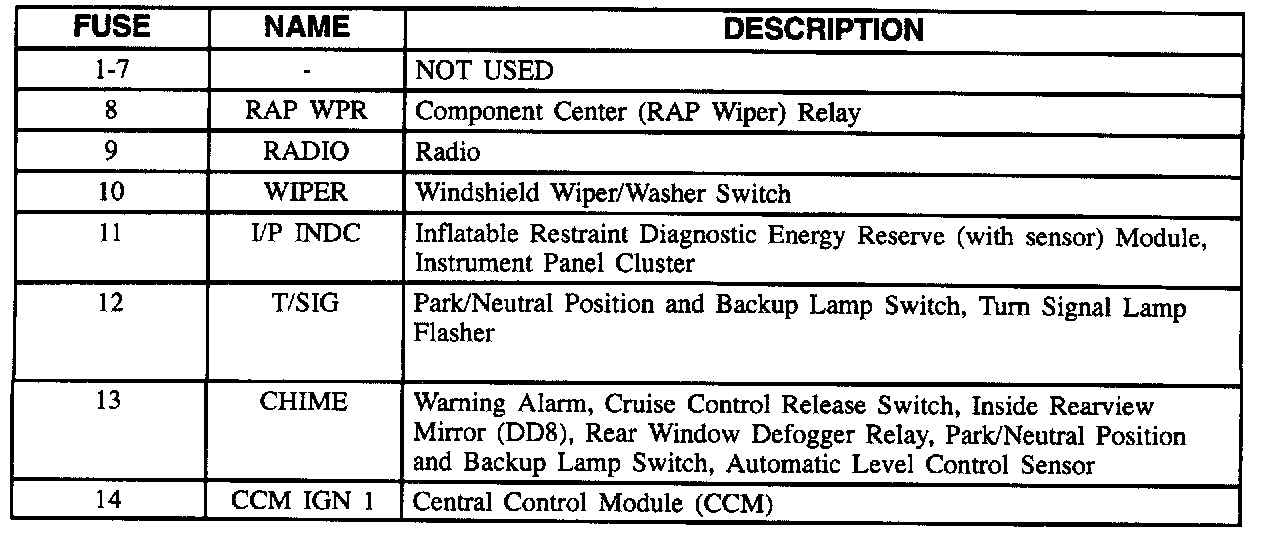

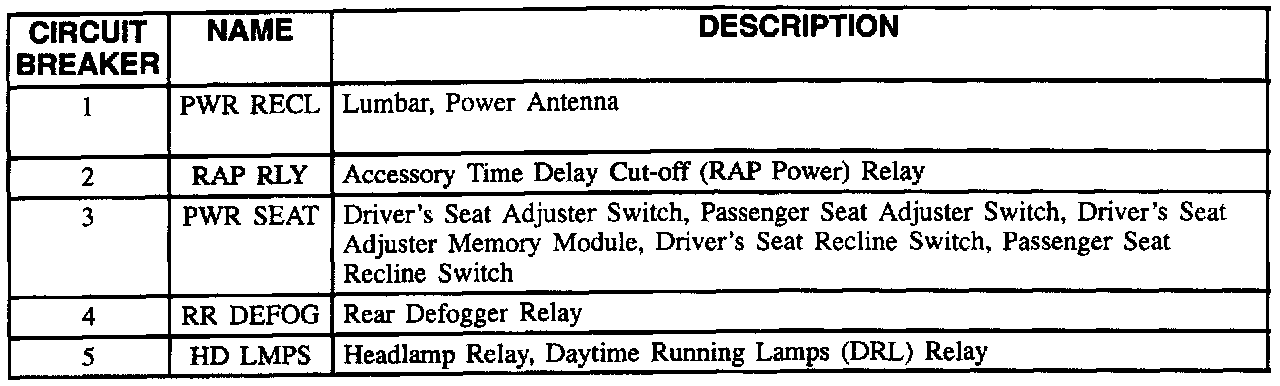

Instrument Panel (I/P) Fuse Block:
Instrument Panel (I/P) Fuse Block:
Instrument Panel (I/P) Fuse Block:
Instrument Panel (I/P) Fuse Block:
Instrument Panel (I/P) Fuse Block:
