Cadillac
>>
1996
>>
Fleetwood Brougham V8-350 5.7L VIN P MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Control Systems
>>
PCM Control
PCM Control

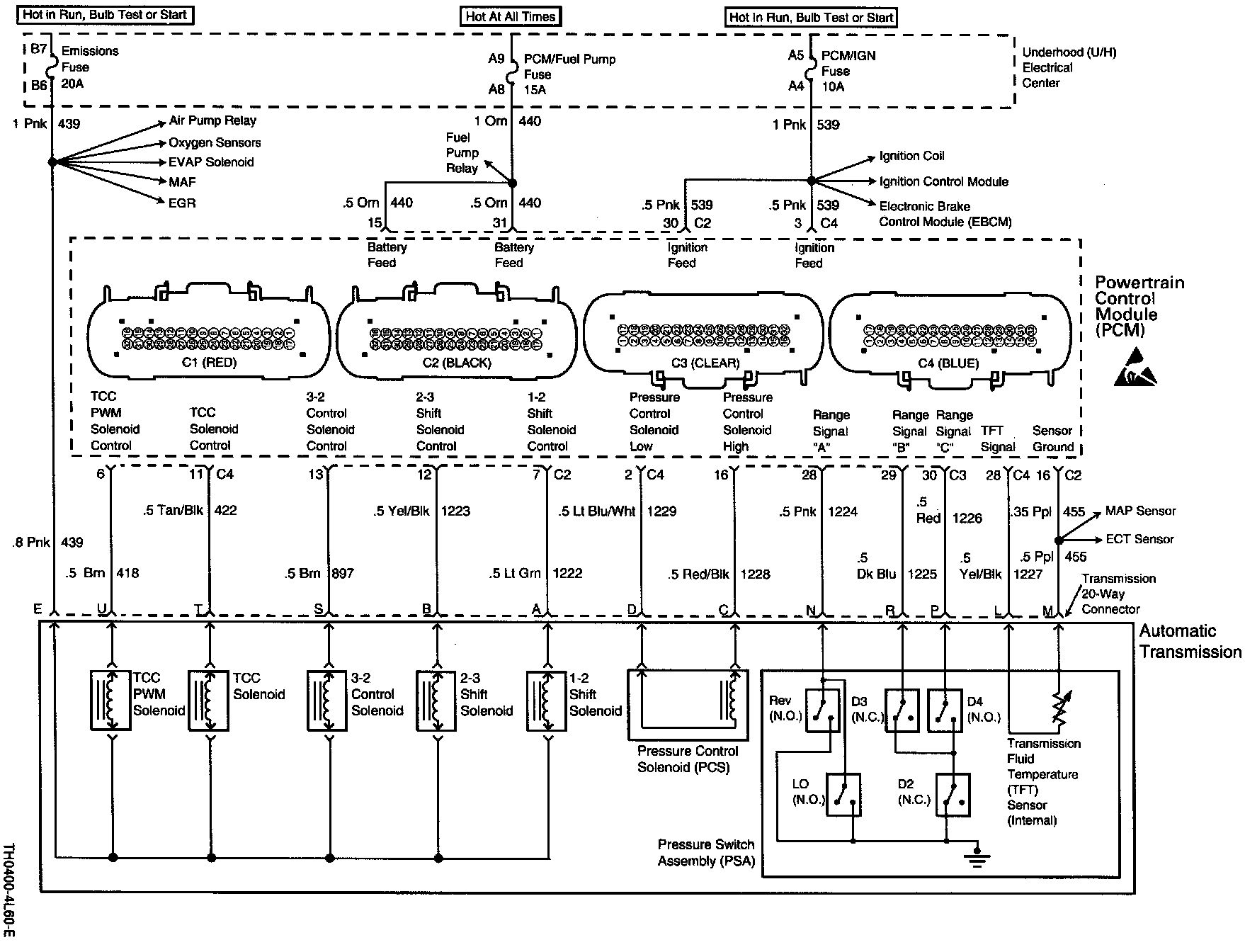

PCM Wiring Schematic (1 Of 2):

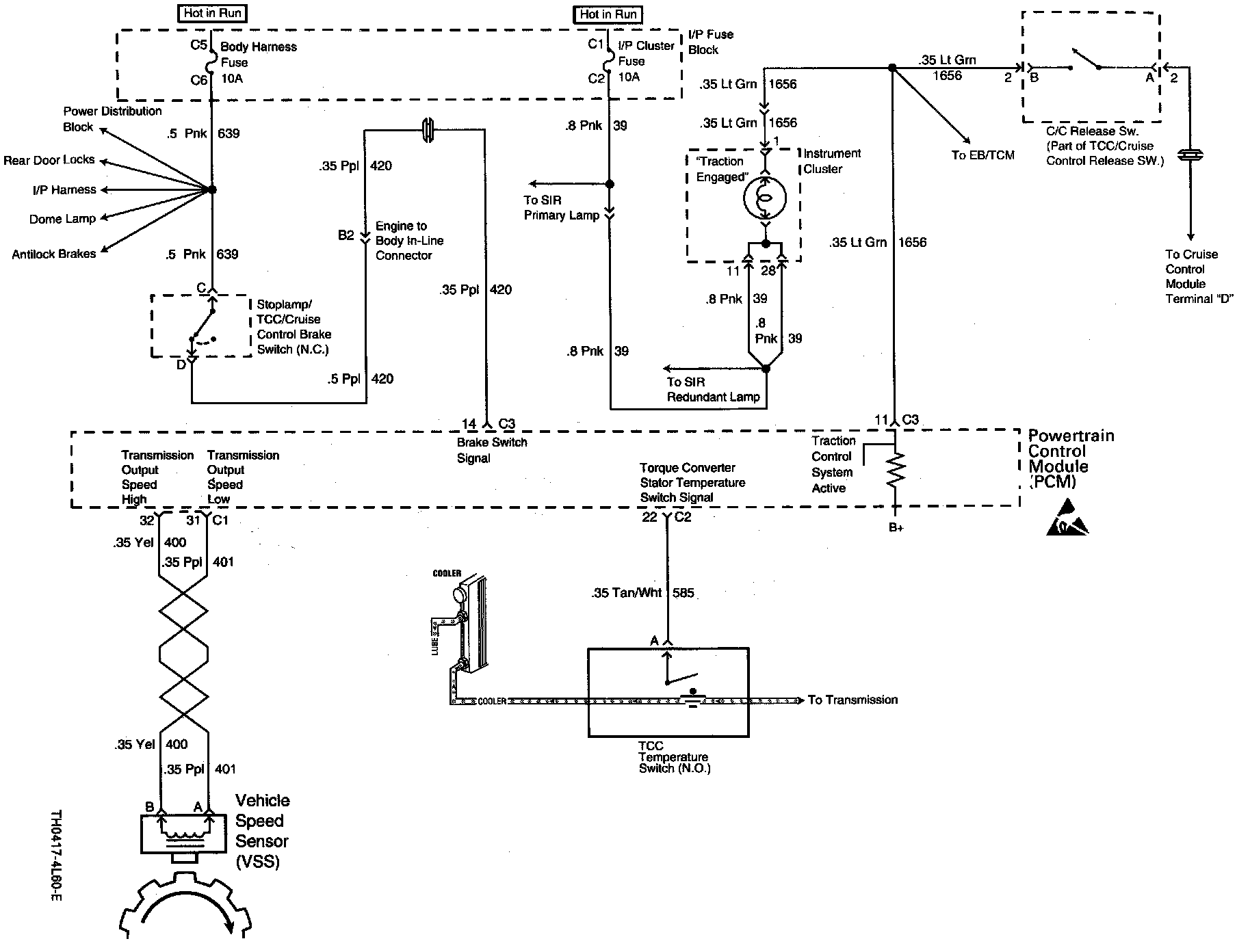

PCM Wiring Schematic (2 Of 2):
