Wiring Diagram

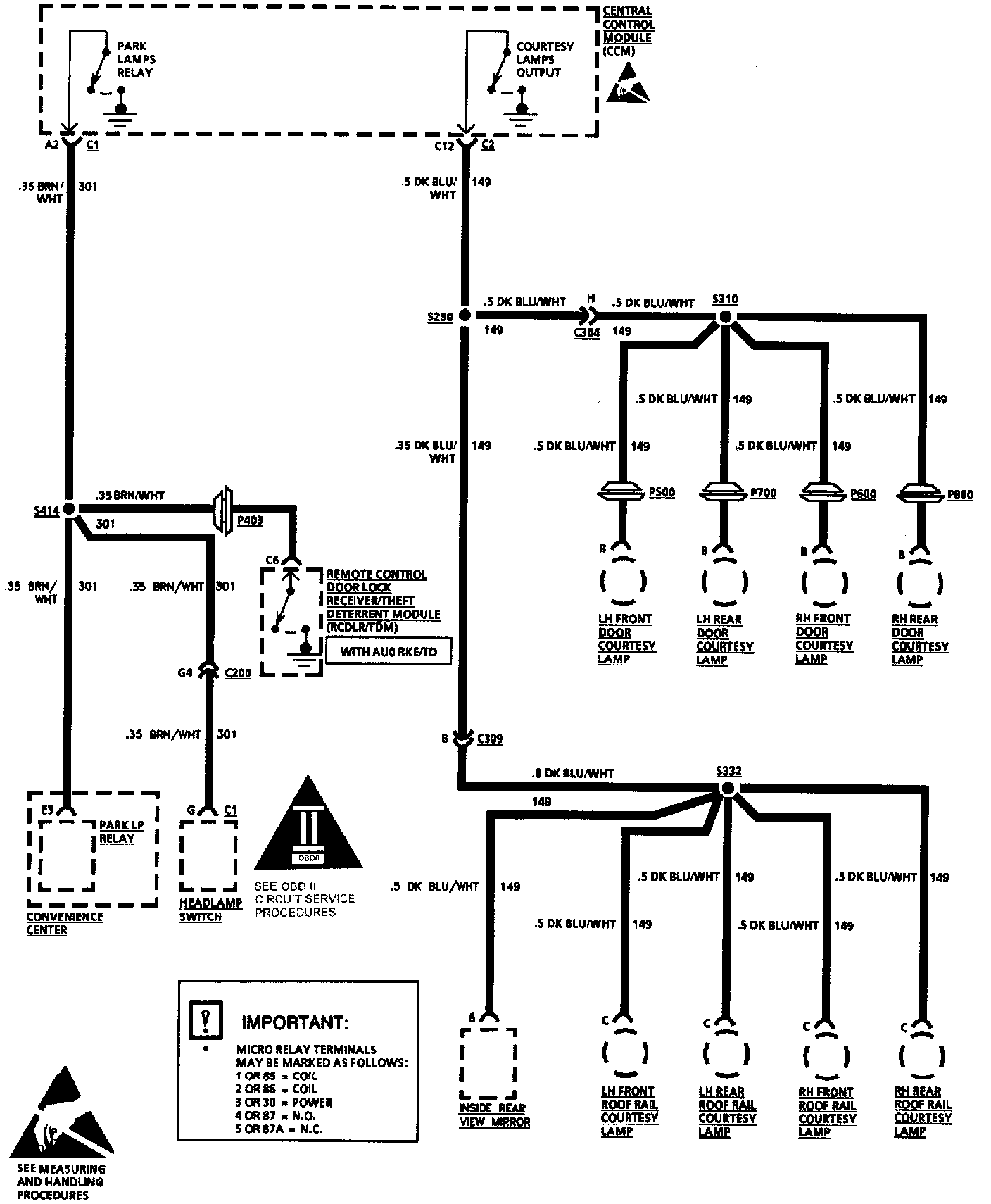

Central Control Module (CCM) (Part 1 Of 5):

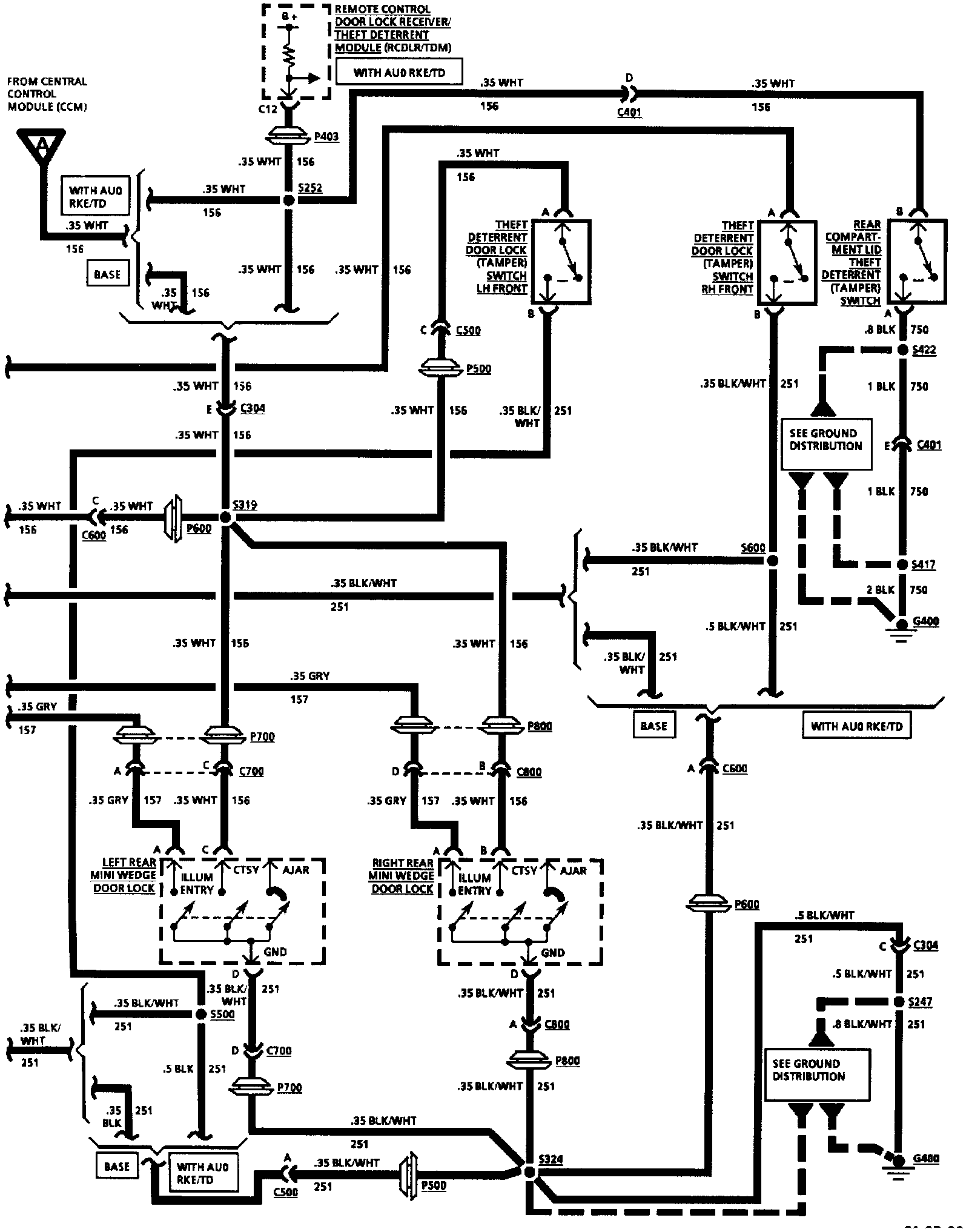

Central Control Module (CCM) (Part 2 Of 5):

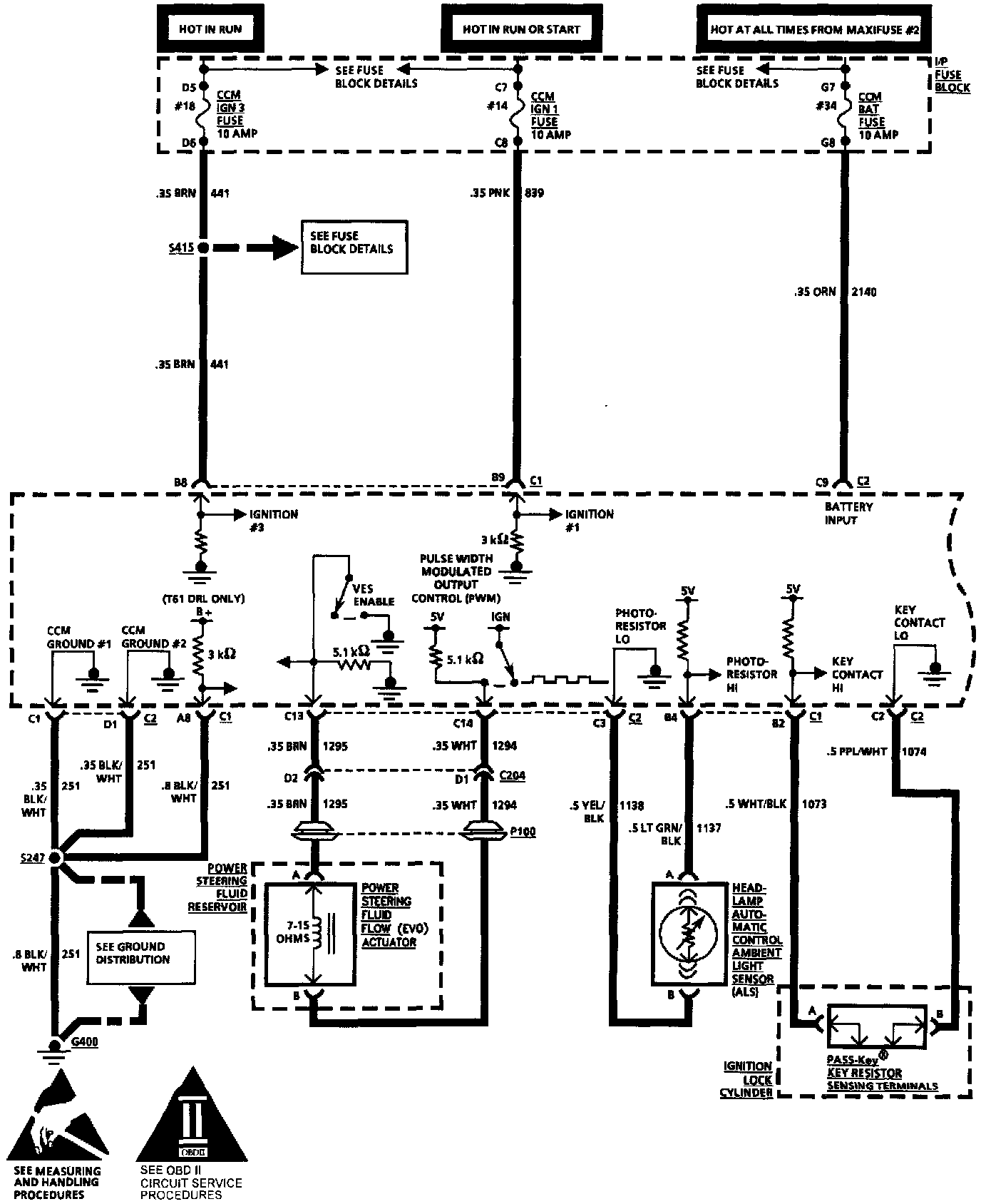

Central Control Module (CCM) (Part 3 Of 5):

Central Control Module (CCM) (Part 4 Of 5):

Central Control Module (CCM) (Part 5 Of 5):
