Cadillac
>>
1996
>>
Fleetwood Brougham V8-350 5.7L VIN P MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
Connectors By Component
>>

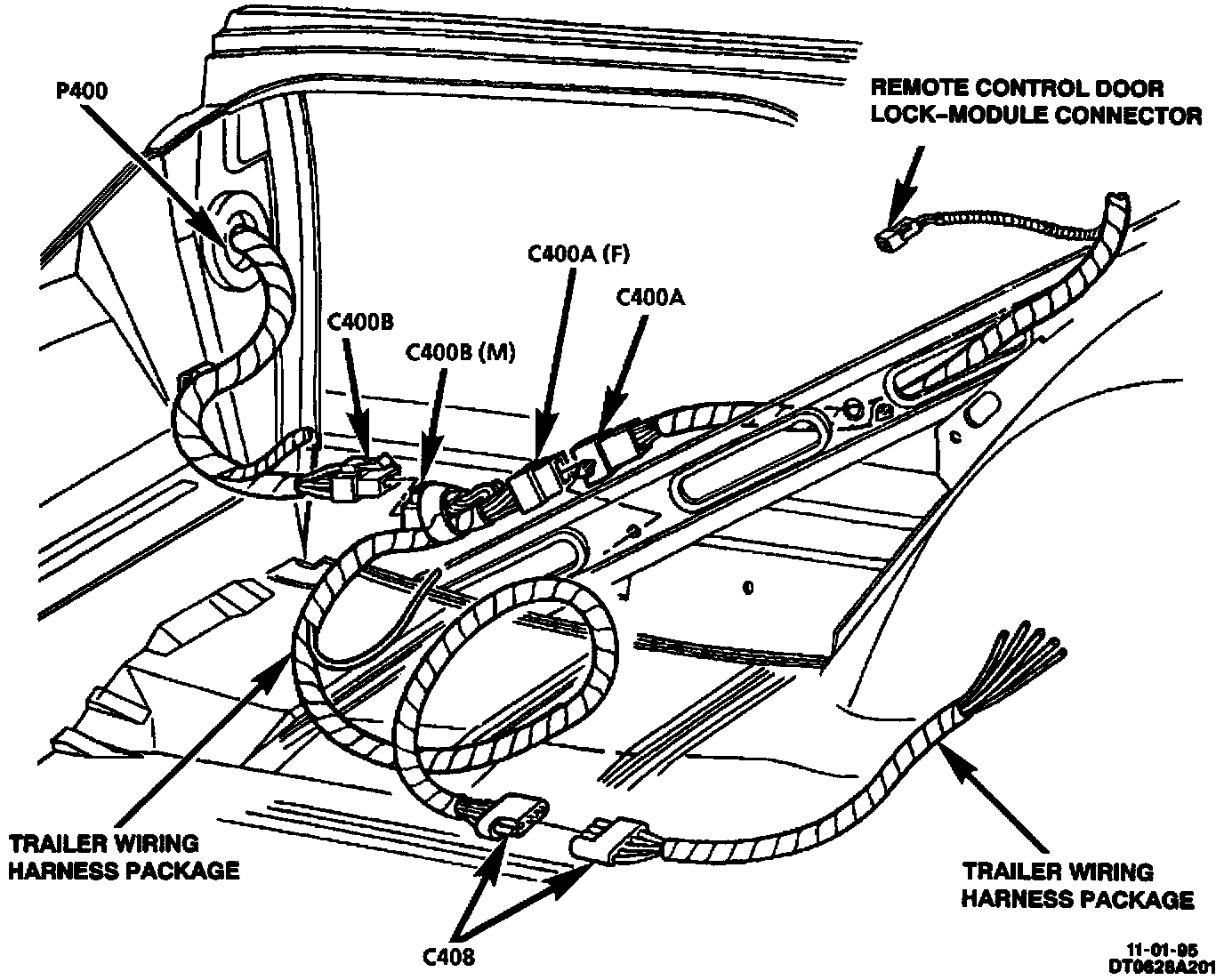

Remote Control Door Lock-Module Connector
Remote Control Door Lock-Module Connector
Left Rear Compartment Area:
