Home >> Cadillac >> 1996 >> Fleetwood Brougham V8-350 5.7L VIN P MFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Central Control Module >> C2

C2

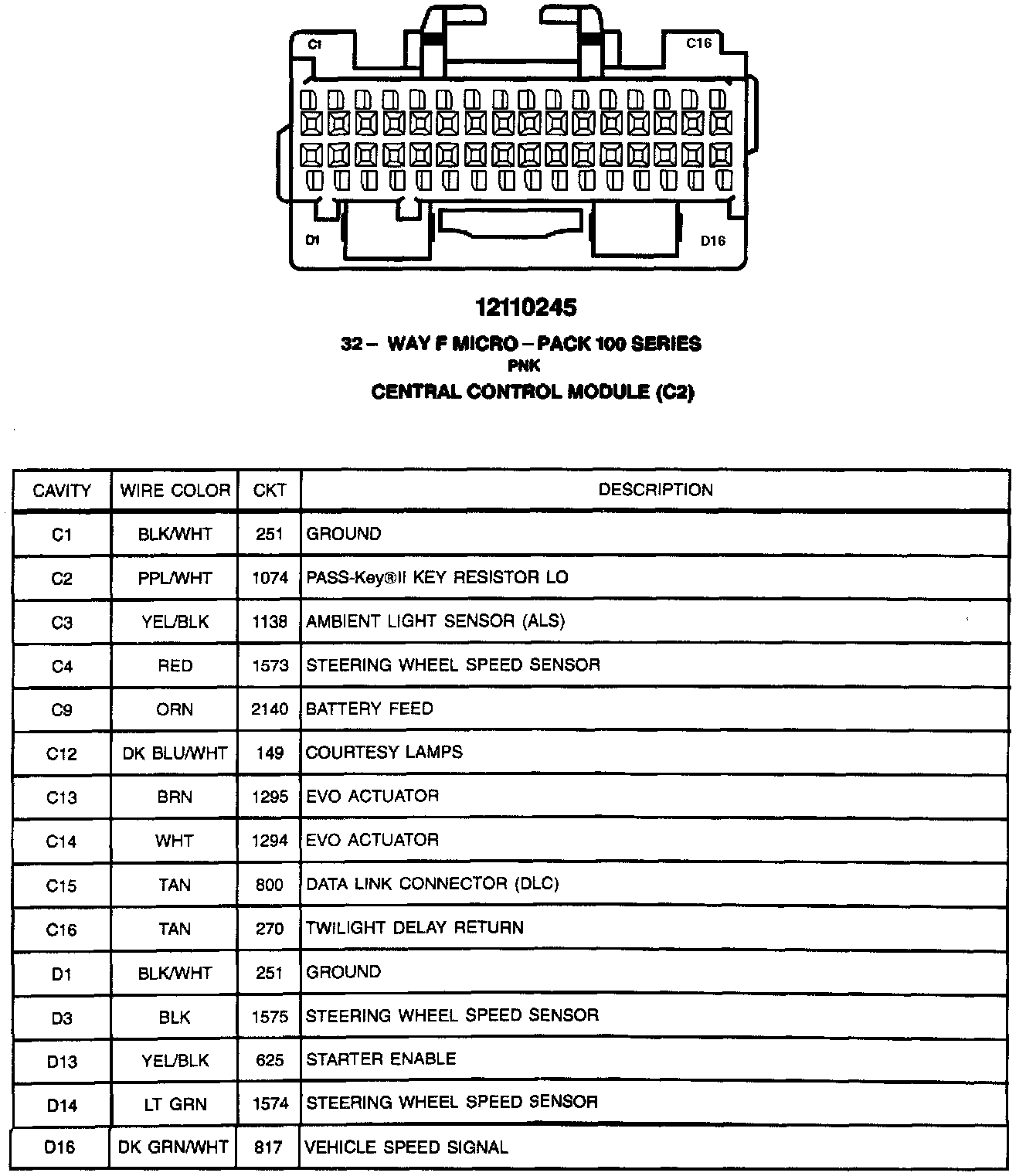

Central Control Module (C2):
