Cadillac
>>
1996
>>
Fleetwood Brougham V8-350 5.7L VIN P MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Relays
>>
Fan Control Relay

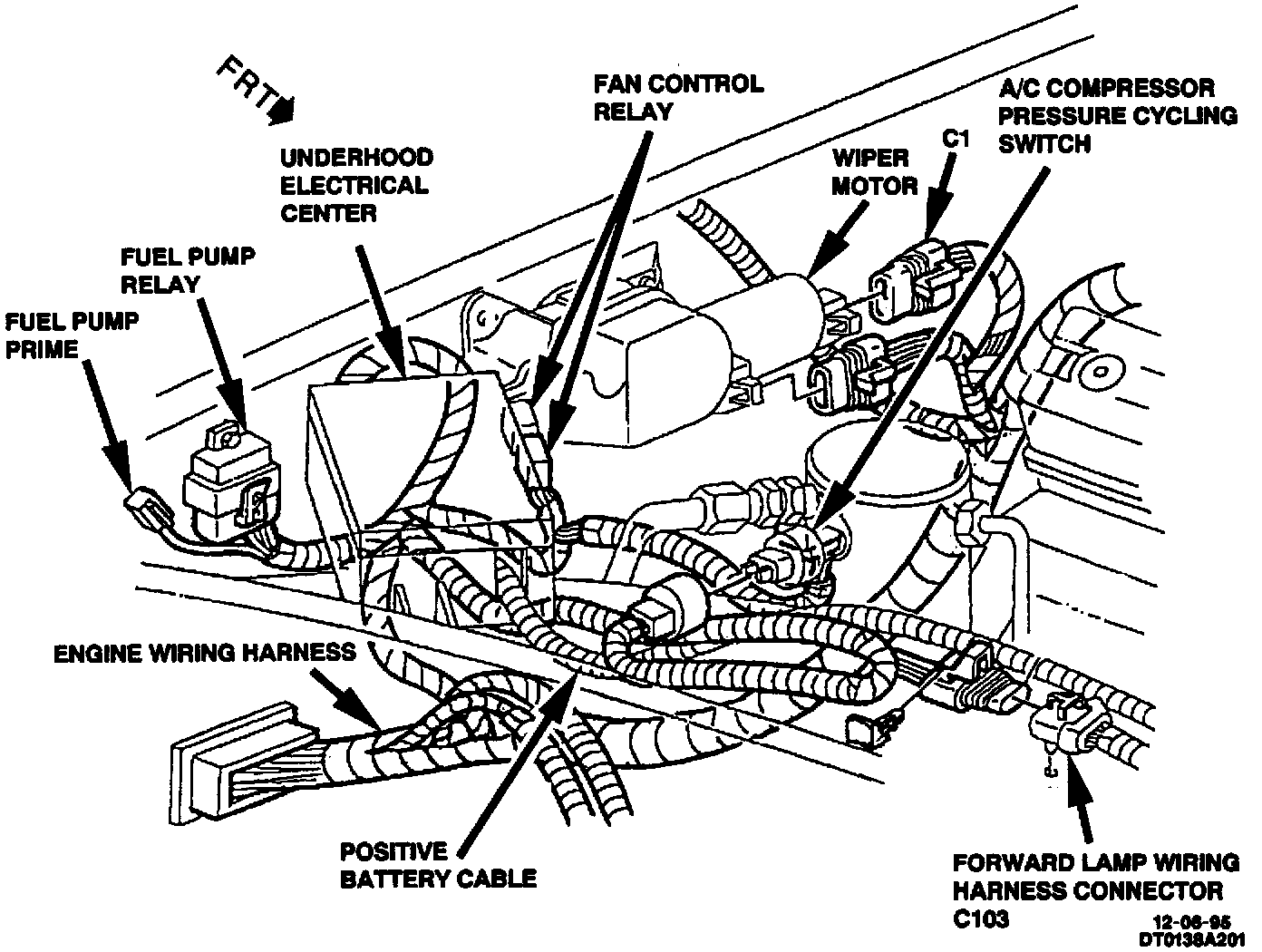

Fan Control Relay
Engine Wiring Harness, Underhood Electrical Center, Right Side:
RH Rear Engine Compartment:
