Blower Motor - Revised Diagnostic Chart 1
File In Section: 1 - HVACBulletin No.: 63-12-17
Date: December, 1996
SERVICE MANUAL UPDATE
Subject:

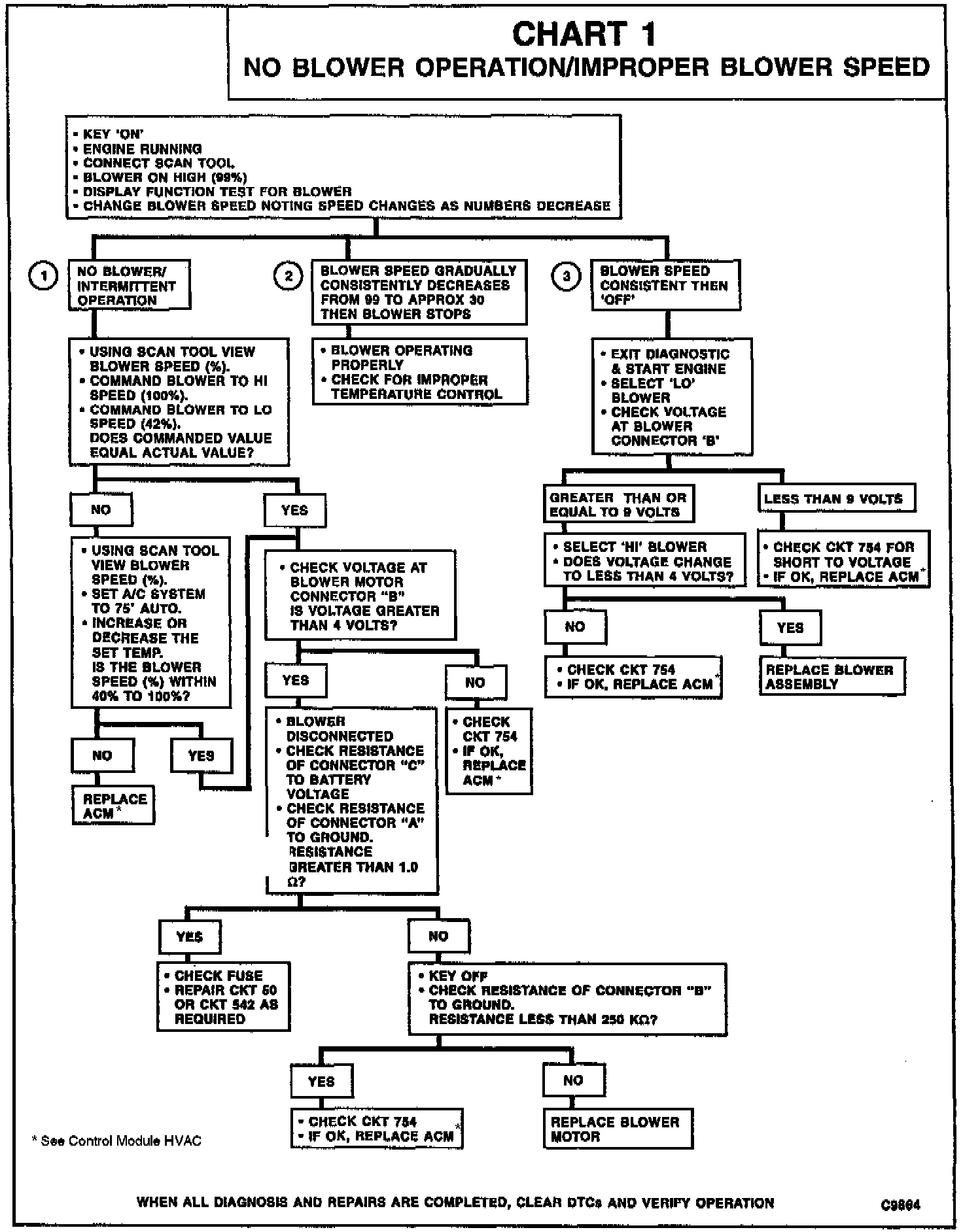

Section 1C - Revised Chart 1 (No Blower Operation/Improper Blower Speed)
Models:
1996 Cadillac Concours, DeVille, Eldorado, Seville
This bulletin is being issued to revise Chart 1 (No Blower Operation/Improper Blower Speed) on page 1C-15 of the Service Manual.
Please replace the current chart with the included.
